Galvanic isolator 33204
currentpowervoltage

galvanic isolator
galvanic isolator
Add to favorites
Compare this product


Characteristics

Type
galvanic
Electrical characteristics
current, power, voltage
Other characteristics
USB

Description

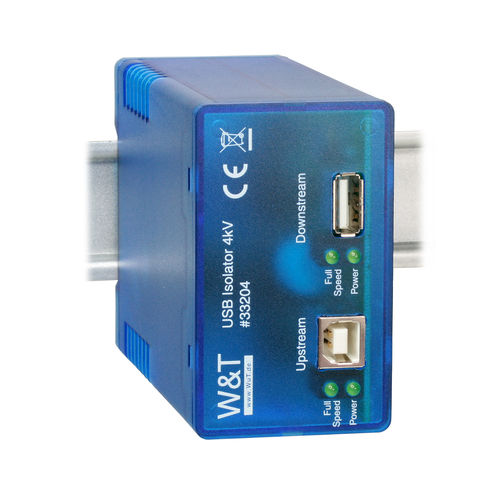

Galvanic isolation for USB devices The USB Isolator 33204 galvanically isolates Low-Speed and Full-Speed connections from the USB host and protects the background hardware. Interfaces: 1 x USB socket, type A Downstream port 1 x USB plug, type B Upstream port Galvanic isolation between the ports Isolation voltage min. 4kV DC Management and connectivity: Multi-stage filtered output voltage allows low-current galvanic decoupling of USB audio equipment Supports low-speed and full-speed USB devices Full Speed (12 MBit/s), Low Speed (1,5 MBit/s) No additional software drivers necessary Housing suitable for installation on top hat rails Solution integrated into USB cable for plug-in Power supply: Supply voltage for Isolator and terminal device provided by USB Optional external voltage supply on the upstream side. This option allows connecting of power-hungry USB devices with a load current of up to 1A without affecting the isolation voltage Standards & more Conforms to standards both in office and industrial environments: High noise resistance for industrial environments Low noise emission for residential and business areas

Catalogs

No catalogs are available for this product.

See all of Wiesemann & Theis‘s catalogs
