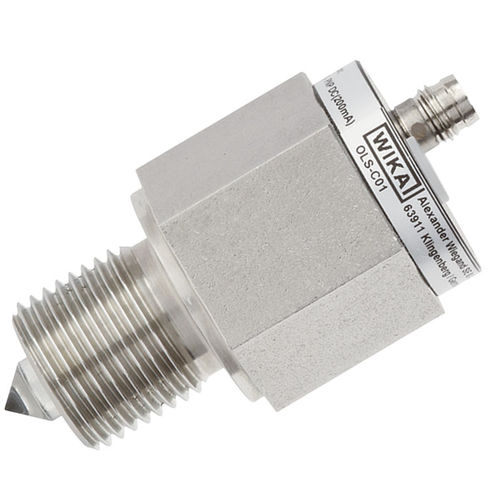

Electro-optical level switch OLS-C01

for liquidsstainless steelthreaded

Machine tools Hydraulics Plant construction and machine building Pump technology For liquids such as oils, water, distilled water, aqueous media Special features Compact design, no moving components Mounting position as required Accuracy ±2 mm Visual indication of the switching status Choice of electrical connections: PUR, PVC cable or circular connector M8 x 1 Description The model OLS-C01 optoelectronic level switch is used for monitoring the level of liquids. The optoelectronic sensor consists of an infrared LED and a light receptor. The light from the LED is directed at a prism which forms the tip of the sensor. So long as the tip is not immersed in liquid, the light is reflected within the prism to the receiver. When the liquid rises within the vessel and surrounds the tip, the light beam is refracted by the liquid, so that the receiver is no longer or only weakly reached by the light and reacts to this change by triggering a switching operation. The switching status can be read directly on the sensor (yellow LED).
