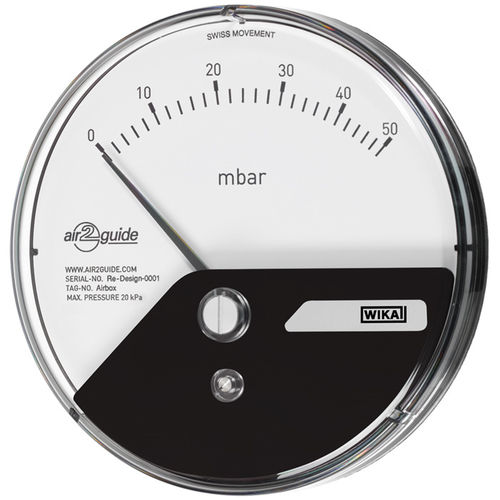

Differential pressure gauge A2G-05
analogIP65IP54

differential pressure gauge
differential pressure gauge
Add to favorites
Compare this product


Characteristics

Pressure type
differential
Display
analog
Protection level
IP65, IP54
Applications
process, for gas, for air, for HVAC
Pressure

Min.: 0 Pa
(0 psi)

Max.: 20,000 Pa
(2.9 psi)

Description

The model A2G-05 Eco differential pressure gauge is used for monitoring the differential pressure in ventilation and air-conditioning applications. The measuring ranges cover from 0 … 50 Pa to 0 … 12,500 Pa. Plus/minus ranges can be fulfilled from -25 … +25 Pa to -1,500 … +1,500 Pa. The separated construction of the pressure measurement chamber and display area ensures that impurities from the process air do not settle on the back of the window. As a result of the 2-part construction (measuring element and mounting ring), the A2G-05 can be exceptionally easily and quickly mounted. Applications For monitoring the differential pressure of air and other non-inflammable and non-aggressive gases Differential pressure monitoring in filters and clean rooms Special features Simple and quick mounting Integrated sealing element for direct installation in an air duct Fixed back mount process connection in angular form for pressure measurement hoses of diameter 4 … 6 mm Maintenance-free Maximum operating pressure 20 kPa
