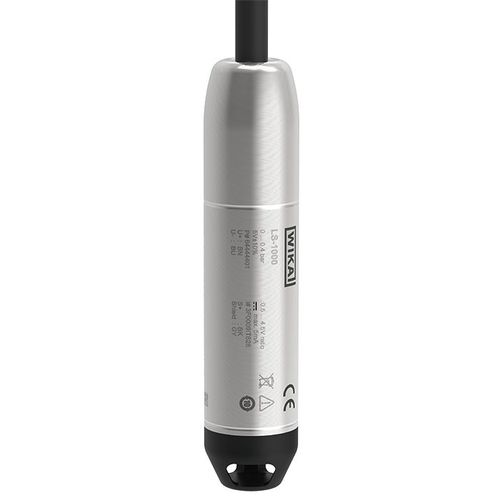

Absolute pressure sensor LS-1000

4-20 mA2-wire3-wire

Sewage lifting stations AdBlue tanks Pumping stations Special Features Hydrostatic levels 1 ... 10 m [3.28 ... 32.81 ft] Permanently leak-tight thanks to special materials and sophisticated design Low total cost of ownership due to the highest reliability and durability Description The model LS-1000 submersible pressure sensor continuously measures the level of liquid media in industrial environments. It records the level hydrostatically from 1 to 10 m. Optimum long-term stability ensures precise measured data and minimal signal drift. Hermetic leak tightness is ensured by the robust design and a specially developed cable with integrated strain relief. Due to its attractive pricing, the LS-1000 submersible pressure sensor is the ideal choice for OEM customers. Permanently leak-tight thanks to sophisticated design The fully welded probe, made of stainless steel, works reliably thanks to IP68 ingress protection. A special cable design with integrated fibre mesh ensures effective strain relief. The potting of the cable inlet provides additional safety. In addition, a helium leak test is carried out for each individual instrument in our final inspection so that even the smallest leaks and hair-line cracks can be detected. Low total cost of ownership The submersible pressure sensor is maintenance-free and especially stable over the long term with an accuracy of 0.5 percent. This minimises failures, downtimes and the total cost of ownership.
