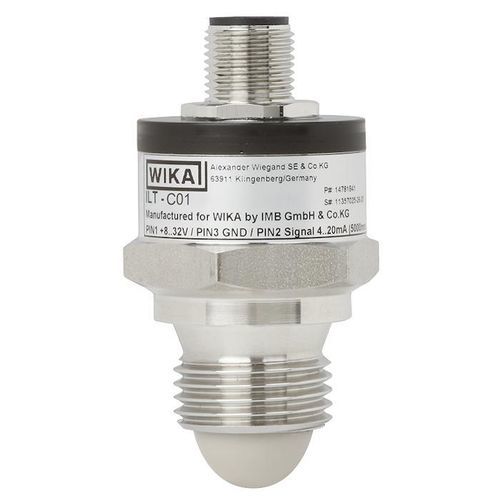

Radar level sensor ILT-C01

for solidsfor liquidsfor high-viscosity liquids

Applications

• Suitable for liquids, highly viscous and solid media
• Particularly suited for continuous level measurement of liquids in containers and tanks
• Designed for industrial applications and mobile working machines

Special features

• Developed for the extreme operating conditions of mobile working machines
• Provides a continuous, accurate measuring signal
• Compact design for straightforward integration
• Can be installed outside plastic containers (measurement through container wall)
• Adjustment function available for complex container geometries

Description
The ILT free-beam radar level sensor enables non-contact level measurement, including through plastic vessel walls.
The free-beam radar emits electromagnetic waves that are reflected by the surface of the measured material; the reflected signals are received and analysed to determine level. Up to two additional switch points can be integrated to provide further switching outputs, e.g. for overflow and/or dry-run protection.
With its compact design and simple handling, the ILT radar sensor is ideal for measurement tasks in industrial environments and on mobile working machines. It is engineered for challenging conditions such as dust, moisture and high temperatures; the non-contact measurement principle and maintenance-free design help reduce total cost of ownership.

Specifications / technical data

• Model: ILT-C01
• Measuring principle: free-beam radar (non-contact, emits electromagnetic waves and analyses reflections)
• Suitable media: liquids, highly viscous media, solids
• Integration: compact design; measurement through plastic container walls allows external mounting
• Switching outputs: up to two additional switch points (e.g. overflow, dry-run protection)
• Operating temperature range: -40 ... +100 °C [-40 ... +212 °F]
• Electromagnetic immunity: interference-free operation at field strengths up to 100 V/m (with metallic shielding)
• Mechanical robustness: vibration resistance up to 40 g; shock resistance up to 100 g
• Application areas: industrial applications and mobile working machines
• Design benefits: maintenance-free design, low total cost of ownership
