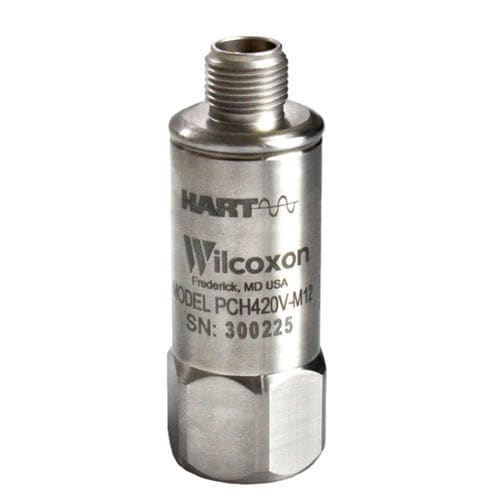

Digital vibration velocity sensor PCH420V-M12

for hazardous locations

Vibration transmitter, HART-enabled, field-configurable, digital velocity sensor, with three independently programmable vibration bands, top exit M12 connector, user-configured full scale 0.5-5.0 in/sec peak PCH420V digital vibration transmitters output 4-20 mA vibration data with the added capability of digital communication with existing plant infrastructure via HART 7.0 protocol. The HART functionality allows field configuration of three separate vibration bands for multi-targeted fault detection from a single sensor. The ‘universal’ vibration transmitter can be configured in the field or on the bench for myriad monitoring applications. HART protocol for digital communication with plant infrastructure 3 independently programmable vibration bands Multi-drop wiring option reduces cabling and installation costs Sensor output - 4-20mA + HART digital protocol Measurement unit - Velocity Detector type - RMS, Peak, True Peak (user configurable) Full-scale range - 0.5 - 5.0 IPS (user configurable) Connector style - M12, 4-pin Connector orientation - Top exit Temperature range - -40°C to +105°C Weight - 115 grams Hazardous area approvals - Non-approved; approved models available
