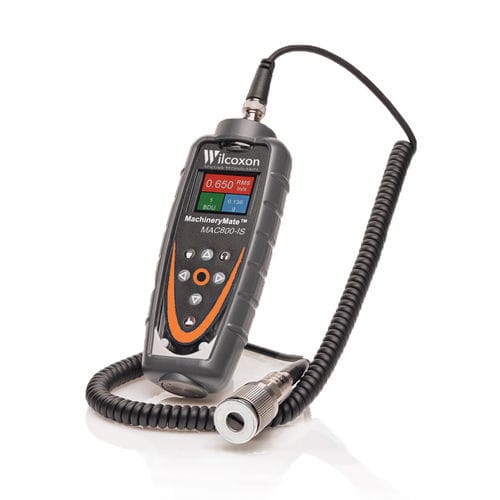

Machine monitoring vibration meter MAC800-IS

FFTaccelerometerindustrial

The new MAC800-IS is an intrinsically safe handheld vibration meter, expanding the reach of walkaround monitoring programs to Class I Div 2/Zone 1 hazardous locations. The MAC800-IS supplies all the functionality of Wilcoxon's MAC800 meter, with built-in filter bands and a display color-coded to ISO 10816-3 alarm levels, and offers the added benefit of hazardous area approvals. Certified by ATEX, IECEx and SGS for use in Class I Div 1/Zone 1 hazardous areas, the meter can be used in plants around the world, and is an excellent option when walkaround data collection needs to be performed in a variety of conditions throughout your facility. Class I Div 1/Zone 1 certified – intrinsically safe Allows data collection in more areas Records, analyzes and displays vibration values color-coded to ISO 10816-3 standards for simpler analysis in the field Built-in filter bands for clearer identification of machine problems Kit includes 786A-IS intrinsically safe accelerometer, magnetic mount, cable assembly, and DataMate software for improved monitoring capabilities Frequency ranges - ISO: 10 Hz - 1 kHz (600 - 60,000 CPM) Low speed ISO: 2 Hz - 1 kHz (120 - 60,000 CPM) Acceleration: 2 Hz - 10 kHz (120 - 600,000 CPM) Max frequency resolution - 75 CPM at 800 lines FFT setting Displayed amplitude units - Acceleration: g Bearing damage: BDU Velocity: in/sec and mm/sec Displacement: mils and mm Displayed frequency units - Hz or RPM Input range - ±60 g Dynamic range, 0.01 g resolution - 96 dB VA bands - Auto set-up Display - OLED full color, high contrast Selectable languages - English (default), Spanish, Portuguese, French, Italian, German Size - 7.95x2.36x1 in. (20x6x2.6 cm)
