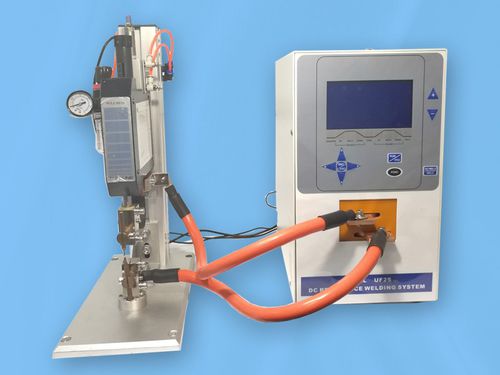

Spot welding system

automaticbenchtopfor metal

UF25 is a double pulse inverter DC welding power supply with excellent welding ability. The main key components such as IGBT and ETA circuit breaker are imported from Germany to ensure high quality. When welding the battery connector, it has the characteristics of short welding time (millisecond level), low calorific value, little damage to the battery, good appearance of the solder joint, high welding tensile strength, strong welding stability, high control accuracy, and low welding defect rate. High inverter frequency makes the control of welding energy more accurate and rapid. With double pulse welding function. Each pulse has the functions of slow rise, slow fall, welding time, welding energy and monitoring data setting. A variety of welding energy control modes, constant current / constant voltage / constant power, to meet the welding needs of different shapes of materials Various welding working modes, ordinary spot welding, roll welding / seam welding, continuous welding, double welding head control, PLC control. The welding results are displayed in text and graphics, which makes the debugging more intuitive and simple. It has the function of welding quality monitoring and result output, and automatically detects unqualified products. Serial communication function. 1.Parameter Power supply: single phase, 220ACV/10A, Standby power consumption: 30W, maximum welding current 2400A, Preloading time 0 ~ 999ms, preheating ramp 0 ~ 49 , pulse interval 0 ~ 99ms , pressure maintaining time 0 ~ 999ms, Overall dimension (length: 200.2mm/ width: 360.5mm/ height: 330.5mm) , weight: 14.2kg
