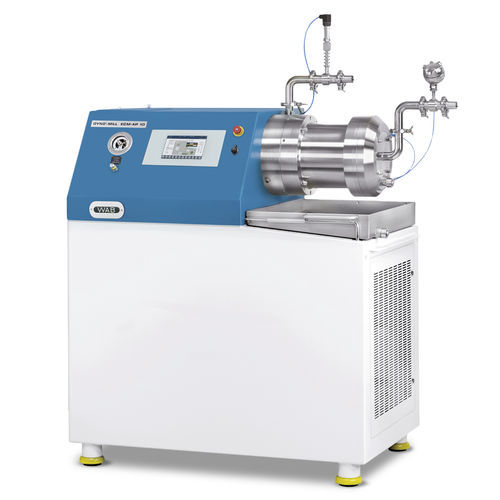

Bead agitator mill DYNO®-MILL ECM-AP

for ceramicsfor metalsfor cell disruption

The ideal agitator bead mill for high throughputs and highly viscous products Evolution in high-performance agitator bead mill design The innovative DYNO®-MILL ECM-AP series is designed to increase throughputs. With a high grinding efficiency, the finest and narrowest particle distributions down to the nanometer range are produced. The patented separation system with self-cleaning effect improves the driveability of highly viscous products. Screen blockages can be avoided and production interruptions for screen cleaning become rare - a considerable advantage depending on the product. Functionality The grinding media separation system is characterized by a flow-optimized and guided grinding media circuit. The grinding media are guided axially over the screen surface by the deflection ring. Subsequently, the DYNO®-ACCELERATOR DSE conveys the grinding media back to the deflection ring without tearing them off. The axial guidance of the grinding media over the screen surface helps to remove coarser particles from the cross sections through which they flow and is the basis for the unique self-cleaning effect of the DYNO®-MILL ECM-AP separation system. Features • Suitability for high throughputs and highly viscous products • Greater flexibility in the selection of process parameters • Availability of metallic and ceramic variants • Uniform grinding media density distribution in the grinding chamber for maximum efficiency • Efficient grinding with grinding media from ø 0.1 mm • Low energy consumption thanks to hydraulic grinding media acceleration • Holistically optimized flow guidance for optimum particle residence time distribution
