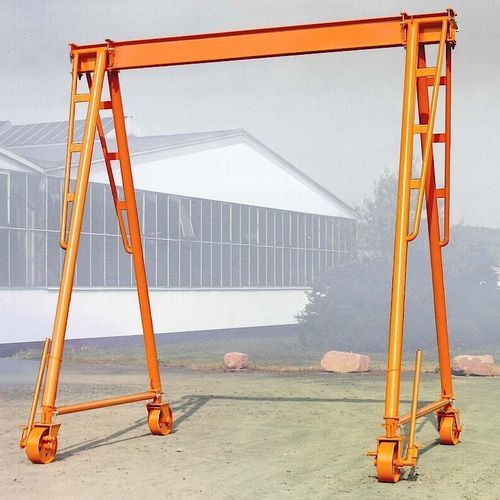

Mobile gantry crane 505 series

steelheight-adjustablefor heavy loads

The V-gantry crane is suitable for a manual or electric hoist for indoor and outdoor use. The stable V-supports of the gantry crane enable a large load capacity, span and overall height. The clamp connection between the V-supports and the girder allows the span to be continuously adjusted. The crane is quick and easy to assemble thanks to the locking pin connections. The gantry crane is mobile and adjustable in height. Individual solutions are possible. Large steel wheels with a diameter of approx. 400 mm guarantee smooth running. The V-crane is also available with a ratchet drive on two wheels for easy movement on firm, level ground. The steering wheels can be locked by 90°; two of the steering wheels can also be locked. Paint finish: orange, RAL 2000. The portal crane from WIMAG can be loaded from 2t, 5t up to 10t, depending on the version. VH gantry crane The height of the VH gantry crane can be adjusted using locking pins. this makes it flexible and versatile. Features • Fast erection and dismantling via bolt connection • Construction according to DIN EN 15018, H2/B2 • Maximum capacity of the gantry crane: 10t • Welding Verification, in-house crane experts • Full assembly: crane with crane test book including a certified preliminary- and construction test, operating instructions, but without hoist. • Accessories: manual/electric hoist, trailing cable mains supply. • Special designs upon inquiry: modified carrying capacity, height, width, rubber tyres, track wheels, ratchet drive, ... • Wheels available: (1) steel as standard (2) steel for tracks (3) rubber tyres up to 3 t carrying capacity (4) rubber tyres with ratchet drive
