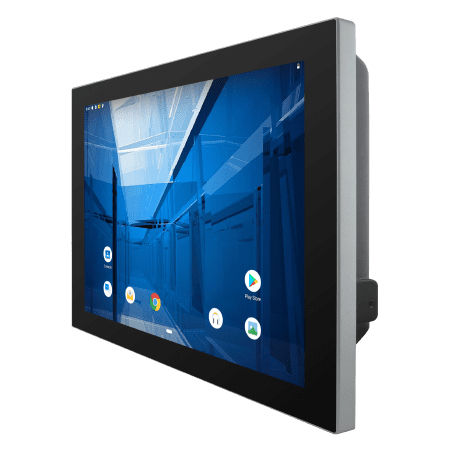

TFT LCD panel PC R15IM3S-GSC3(HB)

LED backlightPCAP capacitive touch screenmultitouch screen

R15IM3S-GSC3(HB) 15" ARM A53 G-WIN GS-Series Full IP65 PCAP Panel PC KEY FEATURES 15 ” 1024 x 768 with P­CAP touchscreen ARM A53 Quad Core 2.0GHz Fanless cooling system and Ultra­low power consumption Onboard 32GB eMMC Onboard LPDDR4 4GB Full IP65 1 x LAN, 1 x RS232, 1 x USB, 1 x Micro USB, 1 x Micro SD Easy-to-Clean Flat Surface Winmate's Flat aluminum display goes beyond that of the standard industrial panel computers with its elegant, edge-to-edge design. The Panel PC is easy to clean, plus the screen is resistant to water and liquid droplets. Dust and Water Protection The dust and waterproof Panel PC complies with IP65 standards. Plus, the M12 connectors are waterproof for varying industrial environments. Fanless Cooling System The fanless design eliminates dust circulation for improved product longevity – especially in heavy-duty applications where dusty conditions are prevalent. Comprehensive I/O Ports Combining ruggedness with a range of I/O ports makes this device highly usable for heavy-duty industrial applications. Plus, the waterproof connectors come with screw-on caps for added protection. Anti-Shock and Vibration The G-Win series is as tough as it gets. The Panel PCs are compliant with MIL-STD-810G, and the aluminum die-casting is rock solid. Plus, optical bonding technology with anti-moisture treatment and resistive coating ensure the screen and housing are both rugged to the max.
