10.1" tablet TG101AD

Windows 10 IoT EnterpriseLinuxWindows 11 IoT Enterprise

Overview

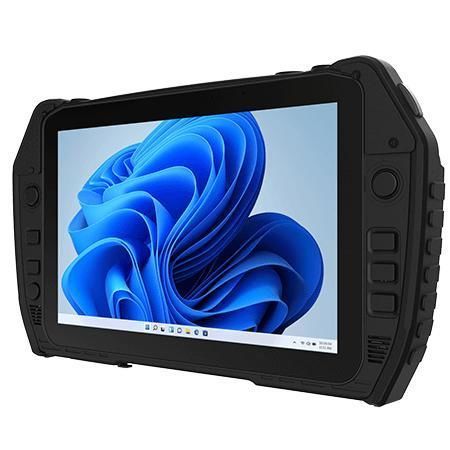

The Winmate TG101AD is a 10.1-inch Windows rugged tablet controller engineered for continuous field use and industrial applications. It integrates an Intel® Core™ i5-1235U CPU, a high-brightness 1920 x 1200 IPS display with optical bonding, IP65 ingress protection and MIL-STD shock/vibration resilience. The unit supports Wi‑Fi, BT and optional 4G/5G connectivity and includes a removable battery for extended mobile operation.

• Key Features10.1-inch 1920 x 1200 IPS display with direct optical bonding
• Intel® Core™ i5-1235U processor
• All-weather dust and water protection (IP65) and MIL-STD drop/shock/vibration
• WLAN, BT 5.3 and optional 4G LTE / 5G
• Removable Li‑Ion battery (typ. 6700 mAh)

• CertificationsCE
• FCC

• Product HighlightsDesigned for mission-critical field use with reinforced mechanical housing and ingress protection to meet IP65 and MIL-STD requirements
• High-brightness 800 nits IPS panel with optical bonding and AG+AF treatment for reliable outdoor readability
• Continuous connectivity: dual-band WLAN (802.11a/b/g/n/ac/ax), BT  5.3, optional WWAN (4G/5G) and GNSS (GPS/GLONASS)
• Compact ergonomic format with purposely placed hardware buttons and fan-cooled thermal design for sustained performance

Notes
Standard OS: Windows 10 IoT Enterprise LTSC (64-bit). Optional: Windows 11 IoT Enterprise LTSC (64-bit) or Linux Ubuntu 22.04. Supports TPM 2.0 for hardware security.

• SpecificationsDisplay: Size: 10.1 inches; Resolution: 1920 x 1200; Type: Projected Capacitive Multi-Touch; Brightness: 800 nits; Contrast: 800:1; View Angles: 85/85/85/85; Optical Bonding; AG+AF treatment
• Processor: Intel® Core™ i5-1235U (3.3 GHz base, up to 4.40 GHz)
• Memory: 8GB DDR5 SDRAM (expandable to 32GB)
• Storage: M.2 Gen4 256GB SSD (expandable to 2TB)
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise LTSC (64-bit) standard; optional Windows 11 IoT Enterprise LTSC (64-bit) or Linux Ubuntu 22.04
• Wireless: WLAN 802.11a/b/g/n/ac/ax; BT 5.3; WWAN optional 4G LTE or 5G; GNSS: GPS/GLONASS
• Mechanical: Dimensions: 317.75 x 188.87 x 35.8 mm; Weight: 1.6 kg; Cooling: fan design
• I/O: 1 x USB 3.0 Type-A, 1 x USB 3.0 Type-C; 1 x micro HDMI; Audio: 2 x speakers
• Environment: Operating Humidity 10%–90% RH (non-condensing); Operating Temp: -20°C to 60°C (AC), -10°C to 50°C (battery); Storage Temp: -30°C to 70°C
• Durability: Shock: MIL-STD-810H Method 516.8 Procedure I; Vibration: MIL-STD-810H Method 514.8 Procedure I; IP65
• Controls: 8 hardware buttons
• Power: Battery: 10.9 V typ. 6700 mAh Li‑Ion removable (3S2P); Battery life approx. 10.5 hrs; Power rating: 19V DC; PD Adapter 100W included
• Accessories: 1 x PD Adapter 100W, 1 x Power Cord; Optional: M10 push-pull power cable, M10 push-pull LAN (mutually exclusive with Microhard RF module), Microhard pMDDL2450 (mutually exclusive with LAN)
