Box PC F65EAC-IT32

embeddedIntel® Core™ i5-1135G7RS-232

Overview

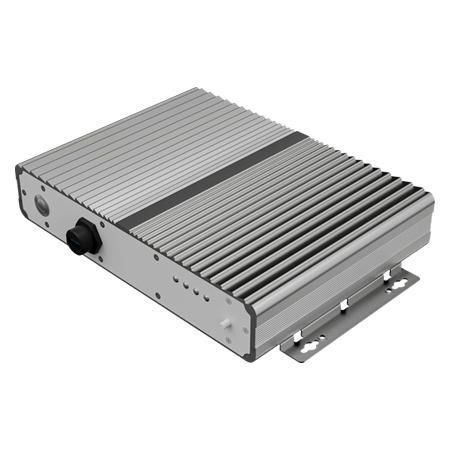

The F65EAC-IT32 is a Full IP65 embedded Box PC engineered for continuous 24/7 operation in harsh industrial environments. It features a fanless aluminum finned chassis, M.2 SSD support with one M.2 expansion socket, isolated wide-range DC input (9–36V) and M12 waterproof I/O connectors for secure industrial cabling.

Key Features

• Full IP65 protection with extruded aluminum enclosure and finned passive cooling
• Ultra-compact, fanless box PC design
• M12 waterproof I/O connectors for USB, LAN, serial, HDMI and power
• M.2 SSD support and 1 x M.2 2230 E-Key expansion slot (Wi‑Fi module)
• Isolated 9–36V DC input for industrial power systems
• Intel® Core™ i5-1135G7 (11th Gen) processor

Certifications

• CE
• FCC

Product Highlights

• M12 connectors provide reliable waterproof and vibration-resistant industrial connections
• Designed for continuous 24/7 operation with industrial-grade power tolerance
• Aluminum alloy finned enclosure for efficient passive heat dissipation
• Sealed, fanless architecture reduces maintenance and improves reliability in dusty or corrosive environments

I/O & Expansion

• USB: 1 x M12 waterproof connector (2 x USB2.0); 1 x waterproof USB Type-A with cover
• Serial: 1 x M12 waterproof connector for RS232/RS422/RS485 (default RS232); optional 2 x M12 for RS232
• LAN: 2 x M12 Gigabit connectors
• Video: 1 x waterproof HDMI connector
• Expansion: 1 x M.2 2230 E-Key slot (Wi‑Fi)
• Indicators: Power LED, Storage LED, 2 x LAN LEDs
• DIDO: Optional 1 x M12 Digital 4 in / 4 out
• Power: 1 x M12 waterproof 9–36V DC input

Accessories

• Included: external open-wire power cable with waterproof connector; external USB/HDMI/COM/LAN cables with waterproof connectors; waterproof caps; RJ45 female-female converter
• Optional: 100–240V AC-to-DC adapter with waterproof connector; power cord

Technical specifications

• Model: F65EAC-IT32
• Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 4GB default; optional 8GB, 16GB, 32GB
• Storage: 128GB SSD default; optional 256GB, 512GB, 1TB, 2TB, 4TB
• Ethernet: 2 x Intel® Ethernet Controller (2 x Gigabit LAN)
• Security: TPM 2.0
• Operating systems (optional): Windows 10 IoT Enterprise 64-bit; Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 24.04 (Wake on Touch not supported)
• WLAN / Bluetooth: optional via M.2 2230 E-Key
• Dimensions: 260.4 x 193 x 50.1 mm (w/o desk mount); 275.4 x 193 x 56.1 mm (w/ desk mount)
• Weight: 3.0 kg
• Mounting: Desk mount
• Operating temperature: 0°C to 50°C; Storage temperature: -20°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing
• Shock/Vibration: IEC 60068-2-27 / IEC 60068-2-64
• IP rating: IP65
