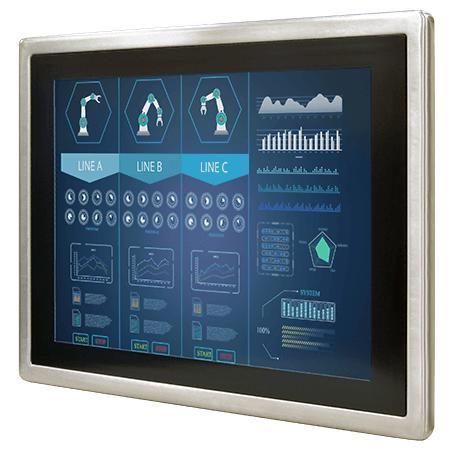

LCD monitor R15L600-65EX

PCAP touchscreen5-wire resistive touch screenmarine

Overview
The Winmate R15L600-65EX is a hazardous-area display engineered for ATEX Zone 2 / IECEx and Class I Division 2 environments. This 15-inch IP65 stainless-steel unit supports explosion-proof touch options and is intended for industrial process visualization, remote data collection and control in oil & gas, chemical and offshore installations.

Key features

• Certified for Class I, Division 2 and ATEX Zone 2 hazardous locations
• 15.0" LCD, 1024 x 768 (XGA)
• 550 nits standard brightness; optional 1000 nits high-brightness panel
• Explosion-proof 5‑wire resistive touch (bonded) with optional PCAP multi-touch
• Stainless steel enclosure with IP65 front protection and waterproof M12 I/O

Certifications & compliance

• ATEX II 3G Ex ic nA IIC T4 Gc
• IECEx Ex nA IIC T4 Gc
• Class I, Div.2 Groups A,B,C,D T4
• CE, FCC; UL 60950-1; EN 62368-1
• Standards: EN/IEC 60079 series; ANSI/ISA-12.12.01

Rugged and waterproof design
The unit features a stainless-steel housing, fanless cooling and IP65-rated front protection when installed per instructions. M12-type waterproof connectors for power and I/O ensure sealed connections suitable for wet, dusty or corrosive environments.

Mounting & installation
Supports VESA 100 x 100 mm mounting and rear-panel or console installations. Designed for low-maintenance operation with robust sealing and optional MIL-STD shock and vibration compliance.

Typical applications

• Oil & gas platforms and refineries
• Chemical and petrochemical plants
• Offshore installations and FPSO units
• Industrial process control and OEM equipment
• Hygienic food & beverage environments requiring stainless housings

Interfaces & accessories
Standard M12 industrial connectors for touchscreen (USB over M12), RS232 remote control and VGA video. Buttons for Power, Adjust up/down, ESC and OK. Accessories include AC/DC adapter with M12 connector, M12 cables, power cord, manual and VESA screws.

Technical specifications (selected)

• Model: R15L600-65EX
• Brand: Winmate
• Display size / resolution: 15.0" / 1024 x 768 (XGA)
• Brightness: 550 nits (default); 1000 nits (optional)
• Contrast ratio: 2000:1; View angles: 88/88/88/88
• Active area: 304.1 x 228.1 mm; Dimensions: 396 x 310 x 49 mm
• Cut-out (panel mount): 365 x 270 mm; Weight: 5.7 kg
• Touch: 5‑wire resistive bonded (explosion-proof); optional PCAP
• Ingress protection: IP65 front; Enclosure: stainless steel
• Power input: 9–36 V DC via M12 connector
• IO: M12 for touch (USB), M12 RS232, M12 VGA; LEDs: power and standby
• Operating temp/humidity: -20 °C to 60 °C; 10%–95% RH non-condensing
• Optional: MIL-STD-810G shock & vibration tests
