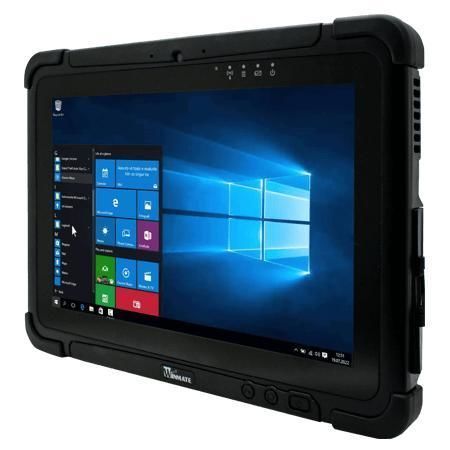

Windows 10 IoT Enterprise tablet M101AD-EX

Windows 11 IoT Enterprise10.1"Intel® Core i5-1235U

Overview
Winmate M101AD-EX is a 10.1-inch Windows ATEX rugged tablet engineered for hazardous and explosive environments (oil & gas, chemical processing, field service). It integrates an Intel® Core™ i5-1235U processor, a 1920 x 1200 IPS sunlight-readable display with optical bonding and anti-glare touch, P-CAP multi-touch supporting rain/glove/stylus, MIL-STD toughness and hazardous-location certifications (Class I Division 2 / ATEX & IECEx Zone 2). The platform supports modular connectivity and optional data-capture modules for OEMs and system integrators.

Key Features

• Intel® Core™ i5-1235U (Alder Lake)
• 10.1" 1920 x 1200 IPS LED with direct optical bonding
• 800 nits brightness with anti-glare touch for outdoor readability
• P-CAP multi-touch: rain, glove and stylus modes
• Hazardous-location certified: CID2 (Class I Division 2), ATEX/IECEx Zone 2
• USB Type-C with Power Delivery and ALT mode; hot-swappable battery design
• MIL-STD-810H and IP65 rated for industrial field use

Product Highlights and Benefits

• Certified for safe operation in explosive atmospheres enabling cross-zone deployments
• Excellent outdoor visibility and touch reliability for field workflows
• Wide connectivity for real-time data integration (WLAN, BT, optional LTE/5G, GigaLAN)
• Optional integrated HF RFID and 1D/2D barcode modules for on-site data capture
• Rugged mechanical design for shock, vibration and drop resilience in industrial use

Certified Safety & Compliance
CE and FCC certified. Hazardous-location certifications include IECEx Class I Zone 2 (Ex ic IIC T4 Gc), ATEX II 3G Ex ic IIC T4 Gc (Zone 2) and Class I, Division 2 Groups A–D T4. KCs and industry device-management compliance (TPM 2.0, SOTI MobiControl) supported.

Product Details

• Intended for Class I Division 2 and ATEX/IECEx Zone 2 hazardous areas (not specified for Zone 1)
• Touch modes: P-CAP multi-touch (rain, glove, stylus)
• Durability: MIL-STD-810H for shock/vibration/drop; IP65 front protection
• Battery: hot-swappable 11.55 V Li-Polymer (typ. 4558 mAh), standard runtime ~8 hours

Included and Optional Accessories

• Standard: AC adapter & power cord, capacitive stylus, one standard battery
• Optional: desk dock, vehicle dock/cradle, vehicle charger, battery charger, hand/shoulder straps, carry bag, metal vehicle docking, stand with handle
• Optional data-capture: 1D/2D barcode reader, HF RFID reader (13.56 MHz)

Technical specifications

• Model: M101AD-EX — Brand: Winmate
• CPU: Intel Core i5-1235U (up to 4.4 GHz)
• Memory: 8 GB DDR5 (standard); 16 GB / 32 GB optional
• Storage: 128 GB SSD (standard); optional up to 2 TB; microSDXC slot
• Display: 10.1" IPS, 1920 x 1200, 800 nits, optical bonding, anti-glare
• Cameras: front 2 MP; rear 8 MP AF with LED
• I/O: USB 3.0 Type-A x1; USB 3.0 Type-C x1 (PD 20V In, ALT mode); RJ45 GigaLAN; 3.5 mm audio; Micro SDXC; Nano SIM; 19-pin docking
• Wireless: WLAN, Bluetooth; WWAN optional (4G LTE / 5G); GNSS: GPS/GLONASS
• Physical: 271.5 x 198.2 x 23.3 mm; weight ~1.2 kg
• Environmental: Operating -10°C to 50°C; Storage -30°C to 70°C; Humidity 10%–90% RH non-condensing
• Ruggedness: MIL-STD-810H (shock, vibration, drop 4 ft); IP65
• Certifications: CE, FCC; IECEx, ATEX, Class I Division 2; KCs
