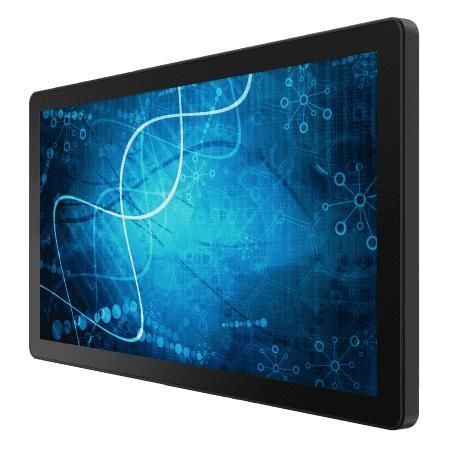

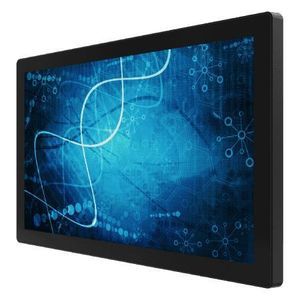

Multitouch screen panel PC W22IT7T-PTA3-ME

PCAP capacitive touch screenIPS LCD21.5"

Overview
Winmate W22IT7T-PTA3-ME is a 21.5-inch medical panel PC powered by Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz). Engineered for hospital workflows, clinical carts and medical equipment integration, it features a fanless design, front IP65 protection, antimicrobial housing and a true flat, easy-to-clean front surface. Target customers include OEMs, system integrators and healthcare providers requiring hygienic, long-lifecycle HMI hardware.

Key features

• Intel® Core™ i5-1135G7 processor (2.4 GHz, turbo up to 4.2 GHz)
• 21.5-inch Full HD (1920 × 1080) IPS with Projected Capacitive multi-touch (P-CAP)
• Fanless cooling for silent operation and reduced particle circulation
• Front IP65 protection and true flat edge-to-edge glass for easy disinfection
• Housing with antimicrobial properties
• Dual-channel SO-DIMM up to 64 GB; default 128 GB SSD, optional up to 4 TB

Certifications

• IEC/EN 60601-1 series
• IEC 60601-1-2:2014/AMD:2020; EN 60601-1-2:2015/A1:2021
• IEC60601-1-6 + IEC62366
• EN55032 / EN55035, FCC Part15B, ICE-003
• ISO14971; RoHS-2, REACH, WEEE compliant

Product details

• Display: 21.5-inch Full HD IPS, 250 nits, 3000:1 contrast, viewing angles 89/89/89/89
• Touch / Glass: Projected Capacitive multi-touch (AG), true flat front
• Processor: Intel Core i5-1135G7 (4 cores / 8 threads, up to 4.2 GHz)
• Memory & Storage: Up to 64 GB SO-DIMM; 128 GB SSD default; optional 256 GB–4 TB; 1 x SATA III bay; 1 x M.2 2242/2280 Key M (SATA/NVMe)
• Network & Security: 1 x Gigabit RJ45 + 1 x 2.5 Gbps RJ45; TPM 2.0; optional WLAN/BT (M.2 2230 Key E)
• I/O: 4 x USB3.2 Gen2 Type-A; 1 x DP1.4 (default); HDMI 2.0 (optional); audio in/out; optional isolation RS232
• Mechanical & Power: Dimensions 530 x 322 x 56 mm; VESA mount; enclosure plastic (antimicrobial); 24V DC input (terminal block), adapter 24V 150W; max consumption 60W
• Environment: Operating 0°C to 50°C, 10%–90% RH non-condensing; front IP65

Applications & Use Cases

• Nurse station terminals for EMR and workflow management
• Surgical suite monitors and patient monitoring interfaces (supports operation with surgical gloves)
• Clinical cart / trolley integration
• HMI for diagnostic and telemedicine equipment

Model / Technical summary

• Model: W22IT7T-PTA3-ME
• Ideal for system integrators, OEMs and healthcare facilities requiring certified, easy-to-clean HMI hardware
