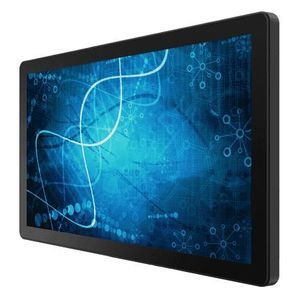

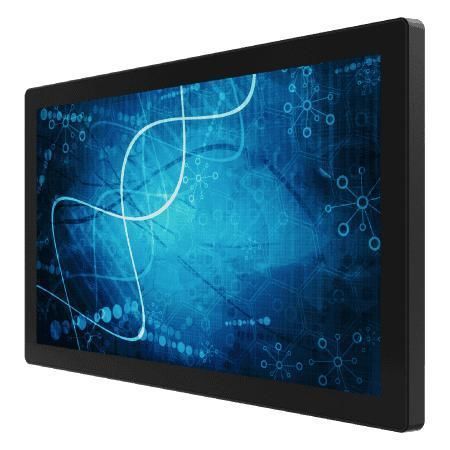

Multitouch screen panel PC W24IT7T-PTA2-ME

touch screenPCAP capacitive touch screen24"

Product Overview
Winmate W24IT7T-PTA2-ME is a 24.0-inch healthcare panel PC powered by an Intel® Core™ i5-1135G7 processor. It is designed for hospital workflows, clinical carts and medical device integration, featuring a fanless thermal design, projected capacitive multi-touch, front IP65 protection, a true flat easy-to-clean front surface and an antimicrobial housing.

Key features

• Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz)
• Projected capacitive multi-touch display (24.0 inches, 1920 x 1080)
• Fanless cooling for silent operation and reduced airborne contamination
• Front IP65 protection against water and dust
• True flat edge-to-edge front for simplified disinfection
• Housing with antimicrobial properties
• TPM 2.0 security, dual-channel SO-DIMM up to 64 GB, configurable SSD storage
• Multiple I/O: 4 x USB 3.2 Gen2, Gigabit + 2.5G LAN, DP1.4 (HDMI optional), audio, optional isolation RS232

Design & Hygiene

• Antimicrobial housing reduces microbial growth and tolerates common medical cleaning agents
• Waterproof front allows cleaning with wipes, sprays or liquids without affecting internal components
• True flat bezel minimizes dust traps and eases routine disinfection
• Fanless construction supports quieter environments such as ICUs and operating rooms

Certifications

• IEC/EN 60601-1
• IEC 60601-1-2:2014/AMD:2020
• IEC 60601-1-6 + IEC 62366
• EN 60601-1-2:2015/A1:2021
• EN55032/35, FCC Part15B, ICE-003
• ISO14971, RoHS-2, REACH, WEEE compliant

Technical specifications

• Display: 24.0 inches, 1920 x 1080, 250 nits, 3000:1 contrast, active area 527.04 x 296.46 mm
• Touch / Glass: Projected Capacitive Multi Touch (AG)
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: Dual-channel SO-DIMM (non-ECC), up to 64 GB
• Storage: 128 GB SSD default; options up to 4 TB; 1 x SATA III for 2.5" HDD/SSD (optional); M.2 2242/2280 Key M
• Ethernet: 1 x Gigabit RJ45, 1 x 2.5 Gigabit RJ45; optional WLAN/BT (M.2 2230 Key E)
• Security & OS: TPM 2.0; Windows 11 IoT/Windows 10 IoT/Linux Ubuntu options (Wake on touch supported on Windows 11)
• I/O: 4 x USB 3.2 Gen2 Type-A, DP1.4 (HDMI 2.0 optional), 1 x Isolation RS232 (optional), Mic in, Line out, 2 x speakers
• Mechanical: 588 x 358 x 60 mm; VESA mount; plastic enclosure
• Environment: Operating 0°C to 50°C; storage -10°C to 60°C; humidity 10%–90% RH non-condensing
• Power: 24 V DC in (terminal block); adapter 24 V 150 W; max consumption 60 W
• Accessories: 100–240V AC to DC adapter, power cord, VESA screws
