EDGE PC IBDRW100-EL

Edge AIartificial intelligenceAI Inference

Overview

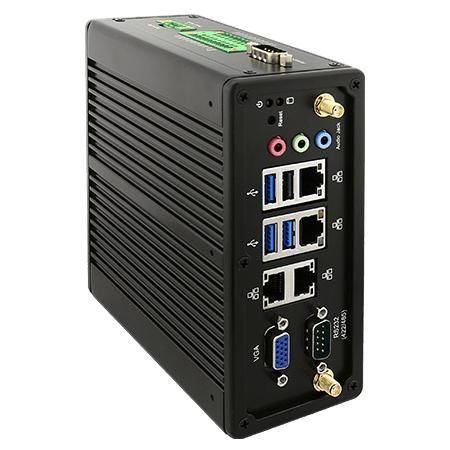

Winmate IBDRW100-EL is a DIN-rail mounted box PC engineered for machine vision, edge AI inference and industrial automation. It integrates an onboard Intel® Celeron® N6211 processor, fanless aluminum enclosure, wide operating temperature range and flexible I/O for cameras, sensors and control systems.

Key Features

• DIN-rail design for compact cabinet integration
• Intel® Celeron® N6211 (up to 3.0 GHz)
• 1 x SO-DIMM DDR4 (up to 16GB), default 4GB (options available)
• 4 x 2.5 Giga LAN RJ45; 3 x USB 3.2 Gen2, 1 x USB 2.0
• 1 x RS232/422/485 (selectable via BIOS) and isolated RS422/485 option
• VGA DB15, audio I/O (Mic/Line In/Line Out)
• Fanless aluminum housing, isolated 9–36V DC power input
• AWS IoT Greengrass certified

Typical applications

• Machine vision and inspection systems
• Edge AI inference and analytics
• Factory automation, protocol gateway and data acquisition

Product highlights

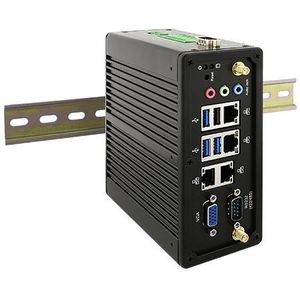

Compact DIN-rail form factor enables easy installation in control cabinets. The fanless aluminum enclosure provides passive thermal management across industrial temperature ranges. Multiple high-speed LAN ports and flexible serial options support wide device connectivity for cameras, sensors and PLCs.

System specification

• Processor: Intel® Celeron® N6211 (up to 3.0GHz)
• Memory: 4GB default; optional 8GB; 1 x SO-DIMM DDR4 up to 16GB
• Storage: 128GB SSD default; optional 256/512GB/1TB/2TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 4 x 2.5 Giga LAN (Intel® controllers)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise, Ubuntu 22.04
• Expansion: M.2 2230 E-key (Wi‑Fi), M.2 2242 B-key (SSD)

Mechanical

• Dimensions: 139 x 65.4 x 152 mm
• Weight: 1.5 kg
• Mounting: DIN-rail
• Enclosure: Aluminum, fanless

Environment

• Operating temperature: -20°C to 60°C
• Storage temperature: -40°C to 70°C
• Operating humidity: 10% to 90% RH, non-condensing
• Shock & Vibration: MIL-STD-810H options

Certifications

• CE, FCC, IC
• UL/CSA 62368-1
• AWS IoT Greengrass

IO Ports

• USB: 3 x USB 3.2 Gen2 (Type-A), 1 x USB 2.0 (Type-A)
• Serial: 1 x RS232/422/485 DB9 (selectable); 1 x isolated RS422/485 DB9 (option)
• LAN: 4 x 2.5 Giga LAN RJ45
• Video: 1 x VGA DB15
• Audio: Mic in, Line in, Line out
• Expansion: 1 x M.2 2242 B-key (SATA SSD), 1 x M.2 2230 E-key (Wi‑Fi)
• DIDO: Isolated 5V 9-in/9-out DIO (20-pin terminal), optional 30V variants
• Power input: Isolated 9–36V DC (3-pin terminal)

Control & Accessories

• Reset button
• Included/optional accessories: 100–240V AC to DC adapter, power cord, terminal block connectors for DIDO, open wire cables, adapter cables, DIN-rail mounting kit

Power

• Rated input: 9–36V DC isolated
• Adapter: 12V 84W (listed)

Technical specifications

• Model: IBDRW100-EL
• CPU: Intel® Celeron® N6211
• Memory: SO-DIMM DDR4 up to 16GB (4GB default)
• Storage: 128GB SSD default, expandable
• LAN: Quad 2.5 GbE
• Mounting: DIN-rail
• Operating temp: -20°C to 60°C
• Certifications: CE/FCC/IC, UL/CSA 62368-1, AWS IoT Greengrass
