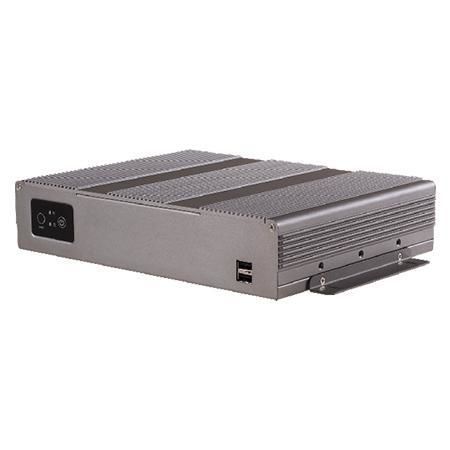

Box PC IB70SB7-101

desktopIntel® Celeron N2930RS-232

Description
Winmate IB70SB7-101 is a fanless industrial box PC powered by an Intel® Celeron® N2930 (Bay Trail-M) designed for medical and industrial embedded applications such as hospital workflows, clinical carts, medical device integration, kiosks, digital signage, edge data logging and industrial automation. The unit provides passive cooling, flexible storage options and extensive I/O for peripheral and sensor connectivity, enabling low-maintenance continuous operation in constrained or noise-sensitive environments.

Key features

• Intel® Celeron® Bay Trail-M N2930, 1.83 GHz (up to 2.16 GHz)
• Fanless box PC (passive cooling)
• Flexible storage: 1 × mSATA SSD (128 GB default; 256/512 GB optional) and optional 2.5" SATA III bay for SSD/HDD
• Multiple I/Os: up to 3 serial ports (RS232/422/485 configurable) and 6 USB ports (including 1 × USB 3.0 / USB3.2 Gen1x1)
• Supports +12 V DC-IN (lockable Din4 pin connector)

Applications / Use cases
Optional modular front display allows conversion to a compact Panel PC. Suited for AI-enabled kiosks, clinical cart integration, patient data gateways, point-of-care terminals, digital signage and edge gateways in healthcare and industrial sites that require dust- and vibration-tolerant, low-noise and low-maintenance computing.

Certifications

• CE
• FCC

Specifications

• Processor: Intel Celeron N2930 1.83 GHz (up to 2.16 GHz)
• Memory: 2 × SO‑DIMM DDR3L 1600 MHz — 4 GB default; 8 GB optional
• Storage: 1 × mSATA SSD 128 GB (default); optional 256 GB / 512 GB; optional 1 × SATA III for 2.5" SSD/HDD
• Ethernet: 2 × Intel® Gigabit LAN (RJ45)
• Operating systems (optional): Windows 7 Embedded; Windows 10 IoT Enterprise (64-bit); Linux Ubuntu 20.04
• WLAN / Bluetooth: optional (via mPCIe)
• Dimensions: 264 × 57 × 192 mm
• Weight: approx. 1.8 kg
• Mounting: Desk mount
• Enclosure: Metal housing
• Cooling: Fanless (passive)
• Operating humidity: 10%–90% RH, non‑condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• USB: Front: 2 × USB 2.0 (Type‑A); Rear: 1 × USB 3.2 Gen1x1 (Type‑A) + 3 × USB 2.0 (Type‑A)
• Serial ports: 1 × RS232/422/485 (default RS232), 2 × RS232 (default), additional RS232 optional
• Video output: 1 × VGA (default); 1 × DVI optional
• Audio: Mic in, Line in, Line out
• Expansion: 2 × mPCIe slots (e.g. SSD, Wi‑Fi module)
• Indicators: Power LED; Storage LED
• PS/2: 2 × PS/2
• Power input: 1 × 12 V DC, Din4 pin connector (lockable)
• Power adapter: 12 V 84 W (adapter listed); accessories: 100–240 V AC to DC adapter and power cord
• Buttons: 1 × Power; 1 × Reset
