Multi-touch screen monitor W50L100-POCVmultitouch screenPCAP capacitive touch screenprojected capacitive touchscreen
Add to favorites
Compare this product
Characteristics
- Technology
- multi-touch screen, multitouch screen, PCAP capacitive touch screen, projected capacitive touchscreen
- Resolution
- 3840 x 2160
- Mounting
- VESA mounting
- Other characteristics
- wide viewing angle, DVI port, large-format, fanless, HDMI, high-resolution, DisplayPort, USB
- Width
Min.: 1,153 mm
(45.3937 in)Max.: 1,153 mm
(45.3937 in)- Height
Min.: 679 mm
(26.7323 in)Max.: 679 mm
(26.7323 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
Overview

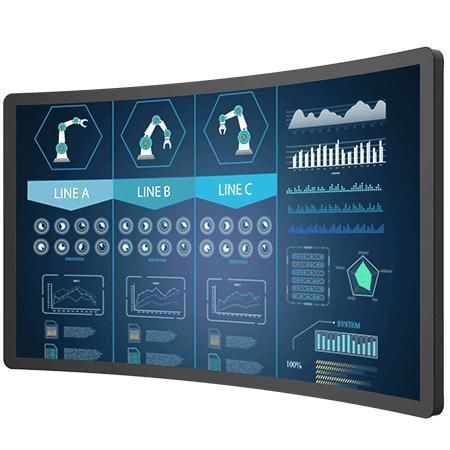

The Winmate W50L100-POCV is a 50-inch curved multi-touch industrial display engineered for control rooms, industrial visualization and equipment monitoring. Featuring 4K resolution (3840 x 2160), R1500 curvature and projected capacitive (P-Cap) multi-touch, it provides wide-angle, high-fidelity visuals and precise touch input for mission-critical applications.
Key Features
Certifications
Product Highlights
Immersive 4K imaging with R1500 curvature ensures consistent color and brightness across wide viewing angles. 425 nits panel brightness and 4000:1 contrast ratio deliver clear visualization in control-room environments. Projected capacitive touch provides accurate, multi-finger input suitable for industrial HMIs and operator stations. The metal enclosure and fanless design support long-term, reliable operation in demanding installations.
Technical Specifications
The Winmate W50L100-POCV is a 50-inch curved multi-touch industrial display engineered for control rooms, industrial visualization and equipment monitoring. Featuring 4K resolution (3840 x 2160), R1500 curvature and projected capacitive (P-Cap) multi-touch, it provides wide-angle, high-fidelity visuals and precise touch input for mission-critical applications.
Key Features
- 50-inch display, 3840 x 2160 (4K) resolution
- Projected Capacitive Multi-Touch (P-Cap) with responsive touch performance
- R1500 curved design for improved wide-field viewing
- 60 Hz refresh rate and 10-bit color support
- Multiple video inputs: 2 x DisplayPort, 1 x HDMI, 1 x DVI
- USB port for touch interface and integration
- VESA mounting for flexible installation
Certifications
- CE
- FCC
Product Highlights
Immersive 4K imaging with R1500 curvature ensures consistent color and brightness across wide viewing angles. 425 nits panel brightness and 4000:1 contrast ratio deliver clear visualization in control-room environments. Projected capacitive touch provides accurate, multi-finger input suitable for industrial HMIs and operator stations. The metal enclosure and fanless design support long-term, reliable operation in demanding installations.
Technical Specifications
- Model: W50L100-POCV
- Touch / Glass: Projected Capacitive Multi Touch Screen (P-Cap)
- Size: 50.0 inches
- Resolution: 3840 x 2160
- Panel Brightness: 425 nits
- Contrast Ratio: 4000:1
- View Angles: 89° / 89° / 89° / 89°
- Display Color: 10-bit
- Active Area: 1068.84 x 616.4 mm
- Video / IO Ports: 2 x DisplayPort, 1 x HDMI, 1 x DVI; USB for touch
- Dimensions (W x H x D): 1153 x 679 x 164 mm
- Mounting: VESA mount (standard patterns)
- Enclosure: Metal
- Cooling System: Fanless design
- Operating Humidity: 10% to 90% RH, non-condensing
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -10°C to 60°C
- Power Rating: 24V DC in
- Control / Buttons: 7 keys — Power, Menu, Down, Up, Left, Right, Exit
- Accessories included: USB cable, HDMI cable, DP cable, DVI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (may vary)
