Android 11 handheld computer P500M9-DMR

ARM® Cortex A53ARM Cortex-A73ARM Octa-core

Overview

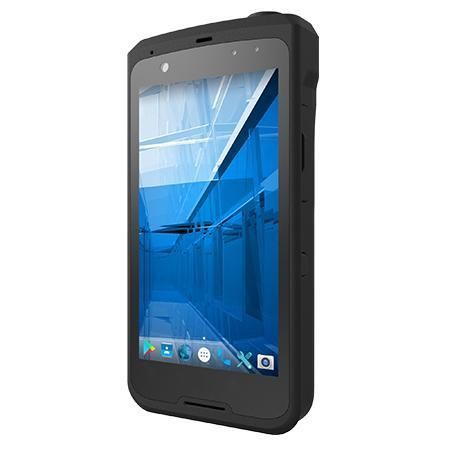

Winmate P500M9-DMR is a 5" multi-mode PoC radio and rugged Android handheld designed for field service, warehouse data capture and mobile workforce communications. It integrates hardware DMR radio with optional VHF/UHF modules, LTE/Wi‑Fi connectivity and dedicated Push-to-Talk (PTT) and emergency controls for mission-critical workflows.

Key features

• 5" 1280 x 720 display with optical bonding for improved sunlight viewability
• Octa-core processor (Cortex-A73 + Cortex-A53, up to 2.0 GHz)
• IP65 protection and MIL-STD-810H shock/vibration/drop compliance
• Integrated DMR radio with optional VHF/UHF transceiver
• Optional NFC and optional 1D/2D barcode reader
• Large programmable physical PTT, glove and rain touch modes, replaceable battery

Applications

• Field service and maintenance (utilities, telecoms, public works)
• Warehouse inventory and mobile data collection
• Security, public safety and mission-critical team communications
• OEM integration and industrial mobility deployments

Certifications

• CE
• FCC

Technical specifications (highlights)

• Model: P500M9-DMR
• Display: 5.0" 1280 x 720, Projected Capacitive Multi-Touch, 500 nits, optical bonding
• CPU: ARM A73 x4 + A53 x4 (Octa-core up to 2.0 GHz)
• Memory/Storage: 4 GB / 64 GB
• OS: Android 11.0
• Wireless: WLAN, Bluetooth, optional WWAN 4G/LTE; GNSS: GPS / AGPS
• Cameras: Front 8 MP / Rear 13 MP with LED auxiliary light (AF)
• Dimensions / Weight: 155.61 x 80 x 26 mm / 350 g
• Battery: 7.6V 2700mAh (user-replaceable), ≈ 8 hr operation
• Ports: 1 x USB Type-C OTG (PD2.0), audio jack, Micro SD, Micro SIM, docking connector
• Radio transceiver: DMR channel spacing 12.5 kHz; TX Power 4W / 0.5W; RX Sensitivity ≤ -121 dBm; Frequency: VHF 136–174 MHz or UHF 400–480 MHz
• Security & Management: SOTI MobiControl compliance (MDM)
