Product overview

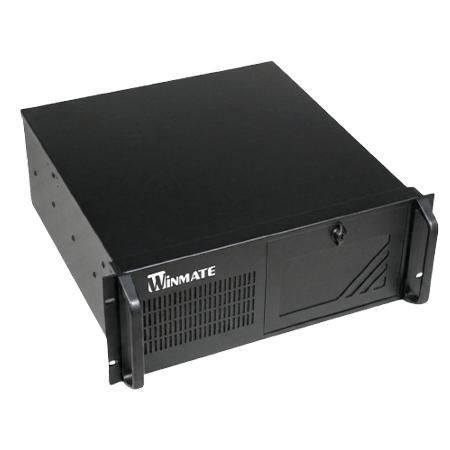

The Winmate WNRK-R680-4U is an expandable 4U rack IPC server for Edge AI, machine vision, vision control and industrial automation. Based on the Intel R680E chipset with LGA1700 sockets, it supports 12th/13th/14th Gen Intel Core processors up to 125 W, up to 128 GB DDR5, a single high-performance GPU up to 300 W, seven PCIe/PCI expansion slots, optional EdgeBMC remote management, and physical security features including a lockable front panel and intrusion buzzer.

Key features

• Supports 12th/13th/14th Gen Intel Core i9/i7/i5/i3 processors (LGA1700) up to 125 W TDP
• 4 x DDR5 U-DIMM slots, up to 128 GB (max 32 GB per DIMM)
• Single high-performance GPU support up to 300 W (e.g., NVIDIA RTX series)
• Single ATX power supply options 850 W–1300 W (configurable by GPU)
• Hot-swappable drive design with RAID support (RAID 0/1/5/10 options)
• Lockable front panel and chassis intrusion buzzer
• Expandable: 1 x PCIe 5.0 x16, 1 x PCIe 5.0 x8, 3 x PCIe x4, 2 x PCI (7-slot design)
• Supports Intel AMT and Intel vPro (varies by CPU SKU); optional EdgeBMC

Overview highlights
Designed for Edge AI inference and machine vision workloads requiring a single high-performance GPU and multiple expansion cards.
Seven expansion slots allow integration of GPUs, frame grabbers, motion control, networking and data acquisition cards.
24/7-capable design with hot-swap drives and RAID options for data continuity.
Optional remote out-of-band management via EdgeBMC and Intel AMT/vPro (depending on configuration).

Certifications

• CE
• FCC

Technical specifications

• Processor: LGA1700 socket supporting 12th/13th/14th Gen Intel Core i9/i7/i5/i3, up to 125 W TDP
• Chipset: Intel R680E
• Memory: 4 x U-DIMM DDR5 5600 MHz, up to 128 GB (max 32 GB per DIMM)
• Storage: Default 256 GB SSD; optional 512 GB / 1 TB / 2 TB / 4 TB; up to 7 x SATA III for 2.5" SSD/HDD (up to 8 TB), RAID 0/1/5/10 support (optional)
• Ethernet: 3 x Intel 2.5 Gigabit Ethernet controllers
• Security: 1 x internal SPI TPM header; lockable front panel; chassis intrusion detection with buzzer
• Operating systems (optional): Windows 11 IoT Enterprise 64-bit; Windows 10 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 24.04
• WLAN / Bluetooth: Supported (optional) via M.2 2230 E-Key
• Sensors: Chassis intrusion detection
• Expansion ports: 1 x M.2 2230 E-Key; 1 x PCIe 5.0 x16 (x16 mode, falls to x8 if PCIe5 x8 used); 1 x PCIe 5.0 x8; 1 x PCIe 4.0 x4; 1 x PCIe 4.0 x4; 1 x PCIe 3.0 x4; 2 x PCI
• Graphic card options (examples, optional): NVIDIA RTX A1000, RTX A2000E 12GB, RTX A4000E, RTX PRO series, and other workstation-class GPUs (single GPU up to 300 W)
• OOB management: Intel AMT and Intel vPro (varies by CPU SKU); optional EdgeBMC
• Dimensions: 483 x 177 x 451 mm
• Weight: 35 kg
• Mounting: 4U rack
• Enclosure: Electroplated steel
• Cooling: Fan design
• Operating humidity: 10%–90% RH, non‑condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• USB ports: Front 2 x USB 2.0 Type-A; Rear 6 x USB 3.2 Gen2 Type-A
• Serial port: Rear 1 x RS232/422/485 (default RS232)
• LAN: 3 x 2.5GbE RJ45
• Video outputs: 1 x DisplayPort 1.4 (max 4096 x 2160 @60 Hz); 1 x HDMI 2.1 (max 4096 x 2160 @30 Hz); 1 x VGA (max 1920 x 1200 @60 Hz)
• Audio: Mic in; Line in; Line out
• Power input: VAC 90–264, ATX PSU 500W–850W (without GPU, optional); ATX PSU 850W/1300W (with GPU, optional)
• Drive bays: 1 x hot-swap RAID box for SATAIII/SATAII or NVMe (optional); 1 x 3.5" (optional); 1 x 24X Slim DVD (optional)
• Internal connectors: 2 x headers for additional 4 x USB 3.2 Gen1; 2 x headers for additional 2 x USB 2.0; 5 x COM headers (1 x RS232/422/485, 4 x RS232)
• Indicators: 1 x LED for power; 1 x LED for storage

Recommended applications

• Edge AI inference and GPU-accelerated machine vision
• Vision control, automated optical inspection (AOI) and defect detection
• Industrial automation, centralized control and data acquisition
• Deployments requiring a combination of a high-performance GPU and multiple PCIe/PCI interfaces

Accessories included

• Power cord; Quick Start Guide
