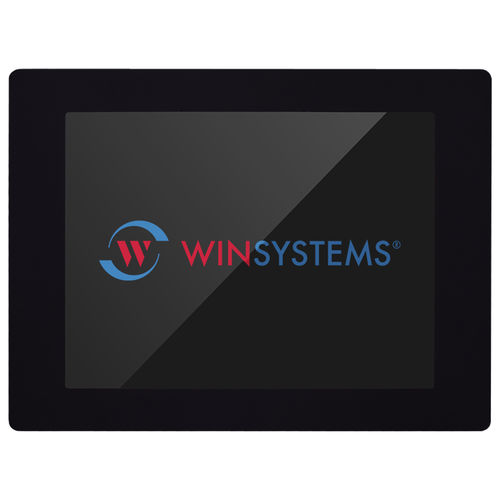

LCD panel PC PPC12-427
multitouch screen12"1024 x 768

LCD panel PC
LCD panel PC
LCD panel PC
LCD panel PC
LCD panel PC
LCD panel PC
Add to favorites
Compare this product

Characteristics

Screen type
LCD, multitouch screen
Display size
12"
Resolution
1024 x 768
Processor
Intel® Atom E3900, quad-core
Other characteristics
fanless, modular, embedded, kiosk, IP65, rugged
Applications
industrial

Description

WINSYSTEMS’ PPC12-427 is a fanless, 12.1-inch panel PC featuring the latest generation Intel Apollo Lake-I SOC processor. Its small size, low power, extended operational temperature, and IP65 rating make it a great fit for harsh environments in the industrial control, transportation, energy, and industrial IoT markets. Graphics for Digital Signage and Kiosk Applications 12-in. Panel PC with Projected Capacitive Multi-touch Screen Supports up to two additional Displays 2x DisplayPort with 4K Resolution Performance for Industrial IoT Edge Computing Intel Apollo Lake-I E3900 Processor (Dual or Quad-core) Up to 8GB DDR3L ECC System Memory Up to 2.0GHZ CPU Clock Rate Time-Coordinated Computing Soldered down TPM 2.0 Hardware Security Enabled 10+ Year Availability Rugged Design for Demanding Environments -30°C to +85°C Operating Temperature Range Wide Range Power Input (10 – 50 V DC) Connectivity and I/O for Embedded Data Acquisition 2x Gigabit Ethernet 2x USB 3.1 Gen 1 and 4x USB 2.0 8x General Purpose Input/Output (GPIO) 2x channel Analog-to-Digital (ADC) 3x Serial Ports HD Audio Storage eMMC SATA with SATA Power mSATA Expansion and Configuration Options for Semi-Custom Solutions Mini-PCI Express M.2 E-Key 2230 Form Factor WINSYSTEMS’ Modular IO80 Expansion
