Temperature data acquisition module PX1-I440-ADCvoltagemulti-channelembedded
Add to favorites
Compare this product
Characteristics
- Measured physical value
- temperature, voltage
- Number of channels
- multi-channel
- Mounting
- embedded
- Options and accessories
- digital, USB, analog input, rugged, programmable
Description

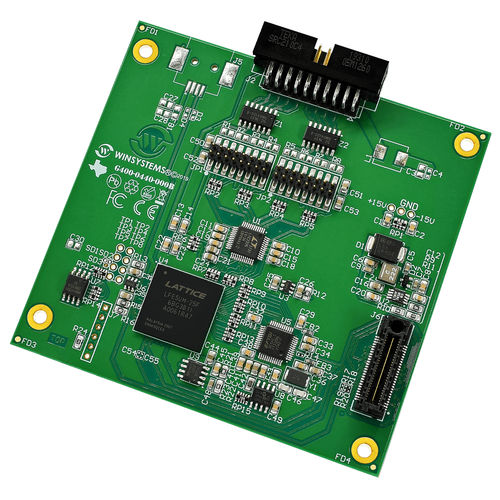

The PX1-I440-ADC is an industrial data acquisition module for embedded systems with PCIe/104 OneBank expansion. This module features eight differential ADC (analog-to-digital converter) inputs based on the Analog Devices LTC2335-16 ADC. Analog to digital inputs terminate to a single 20-pin box header connector. The PX1-I440-ADC provides flexible voltage ranges from 0V-5V, 0V-5.12V, ±5V, ±5.12V, 0V to 10V, 0V to 10.24V, ±10V, ±10.24V. The PX1-I440-ADC-420 configuration includes precision resistors on-board for measuring 4-20mA current loop inputs from a variety of sensors. Customized populations are available for OEM clients that need a mix of 4-20mA and Voltage inputs.
