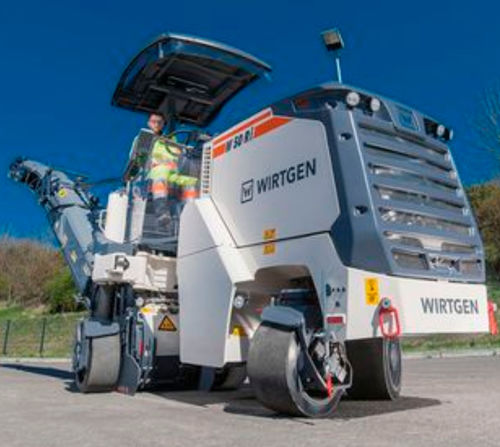

Compact cold planer W 60 Ri

for asphalt

Product overview
The rear-loading cold milling machine W 60 Ri is a compact, one-operator machine designed for professional milling tasks with a working width of 0.6 m. It combines efficient controls with automatic functions and a flexible rear-loading system to optimise material handling.

Key features

• Rear-loading half-metre milling width (600 mm).
• Easy-to-use additional and automatic functions to speed up site workflows.
• Integrated LEVEL PRO PLUS levelling system for precise milling results.
• Multiple milling drums available for high application flexibility.
• Adjustable rear-loading system for optimised material transfer to trucks.

Highlights and operator comfort

• LEVEL PRO PLUS: integrated into machine control; depth measurement via travel sensors in side-guard cylinders; ultrasonic sensor on extendable left levelling boom.
• Ergonomic multifunction armrest with colour display, adjustable machine height, job-data display and programmable favourite buttons.
• Excellent visibility with high‑quality camera system and ergonomic comfort seat with heating.
• Advanced steering: offset front wheels, large steering angle, automatic steering of the right rear wheel for increased manoeuvrability.
• Transport speeds up to 12 km/h (4-wheel version); precise fingertip steering via the multifunction armrest.

Cutting and milling technology
Kleinfräsen are rear-loaded machines with a milling drum located at the rear that feeds asphalt granulate onto a swivelling conveyor for direct transfer to waiting trucks.

• Cutting system: wear-resistant HT08 pick holder system.
• Minimal distance from machine edge to milling cut for small edge strips.
• Hydraulically liftable side guards with proactive float position.
• Automatic scraper lift triggered by overload sensor; scraper decoupled from conveyor for partial loading.
• Broom for clearing milled surfaces.

Characteristics / technical specifications

• Emission stage: EU Stage 5
• Operating weight, CE: 7,450 kg
• Milling width (standard drum): 600 mm
• Max. milling depth: 210 mm
• Displacement: 4.1 l
• Max. power: 105 kW / 143 PS at 2,300 min-1
• Rated power: 105 kW / 143 PS
• Max. travel speed (3-wheel version): 8 km/h
• Max. travel speed (4-wheel version): 12 km/h
• Max. milling speed: 0 - 2.9 km/h
