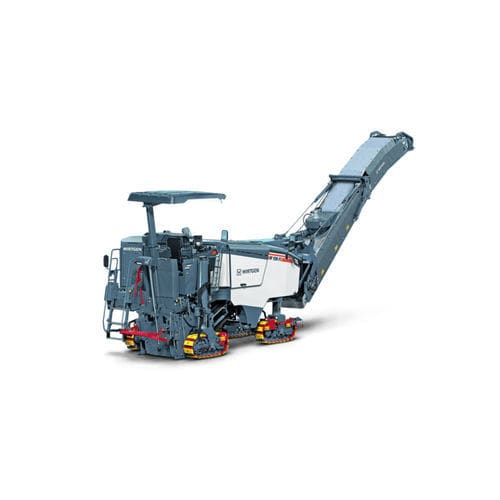

Compact cold planer W 120 Fi

Overview
The one-metre class front loader designed for cold milling applications at a 1.2 m working width. Compact dimensions and optimized machine weight enable operation in confined sites, including urban areas. The machine supports a variety of FCS milling drums with different tool spacings and working widths for broad application coverage.

Key features

• FCS milling drums with multiple spacings and widths to match job requirements.
• LEVEL PRO ACTIVE levelling system for precise milling results.
• Intuitive operator concept and digital assistance for efficient single-operator use.
• MILL ASSIST machine control for sustainable, productive machine operation.

Unrivalled visibility

• High-quality camera system available with two or five cameras.
• Comprehensive high-performance LED lighting package.
• Lateral sliding operator station for optimal view along the milling line.

Maximum loading capacity

• Belt swing angle up to 65° to both sides for improved material discharge.
• Two-speed belt swing for flexible operation.
• Enhanced belt rib profile for higher conveying capacity.
• Temporary "Booster" function to extend discharge parabola when required.

Power with efficiency

• Modern John Deere engine with torque curve tailored for cold milling applications.
• Extended drum speed range for versatile applications.
• Wide-opening engine hood for simplified maintenance.
• Robust electronic concept with CAN-bus redundant lines.

WPT – WIRTGEN PERFORMANCE TRACKER (informational functions)

• WITOS FleetView telematics system available with optional WPT equipment.
• Direct display of heavy vehicle loading.
• Unambiguous site documentation.
• Accurate and fast site quantity accounting.

Comfort and ergonomics

• Ergonomic operator station for high comfort.
• Large 5" control display in multifunction armrest with relevant information.
• Ergonomic access with automatic height adjustment.
• External control panel with frequently used functions.
• Generous storage and anti-vandal protection concept for control units.

Cutting technology
High-quality milling results for precise and efficient cold milling. Optimal interaction between drum, holder and milling teeth is essential. WIRTGEN develops efficient cutting systems and continuously improves components based on field experience.

Leveling technology
WIRTGEN leveling systems control height, depth and inclination by continuously comparing actual and reference values and proportionally compensating deviations. Systems available include 3D, laser and levelling arms with Sonic-Ski sensor.

Control technology
Machines integrate a machine control system with a high share of proprietary software to ensure reliability, flexibility and adaptability to specific applications.

Technical data
Emission category: EU Stage 5 / US EPA Tier 4f. Operating weight CE: 21,000 kg. Milling width: 1,200 mm. Maximum milling depth: 330 mm. Displacement: 9 L. Max transfer speed (tracked): 0 - 7.5 km/h. Max transfer speed (wheeled): 0 - 7.5 km/h. Maximum power: 265 kW / 360 hp. Max milling speed: 0 - 3.6 km/h. Rated power: 265 kW / 360 hp at 355 min-1.

Features / Technical specifications (summary)

• Standard milling width: 1,200 mm.
• Maximum milling depth: 330 mm.
• Operating weight: 21,000 kg.
• Engine: John Deere, 9 L displacement, max power 265 kW (360 hp).
• LEVEL PRO ACTIVE levelling system with 3D/laser options and Sonic-Ski arm.
• Assistance systems: MILL ASSIST, Active Conveyor, Active Lift Up, Active Transport Control, ISC (traction control).
• Extensive ergonomics and visibility options (cameras, LED lighting, sliding operator station).
