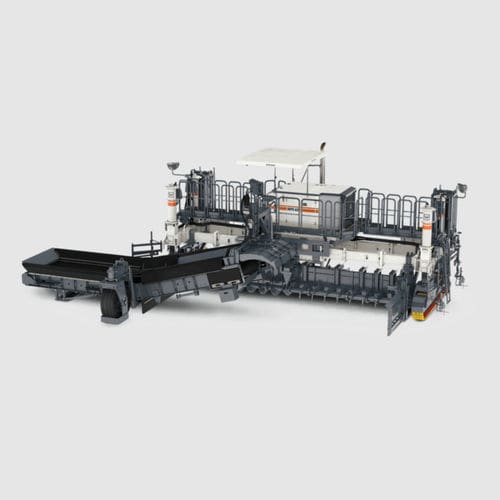

Concrete spreader WPS 62i

Short description
The WPS 62i is a cost‑effective 2‑track side placer/spreader designed for high‑performance concrete feeding for paving widths from 4.0 m to 7.5 m and layer thicknesses up to 500 mm. The machine features a hydraulically telescoping frame, a concrete strike‑off unit and a fast folding belt conveyor with an intelligent control concept.

Key benefits

• High‑performance feeding of large concrete volumes across the full working width
• Hydraulically telescoping machine frame and adjustable concrete strike‑off unit
• Fast folding belt conveyor with smart control for maximum concrete availability
• Fully modular design with hydraulic quick‑change couplings for easy reconfiguration and rapid transport
• Precise control via stringline scanning, stringline‑free 3D applications or WIRTGEN Autopilot 2.0

Intelligent machine concept

• Homogeneous distribution of large volumes of side‑fed concrete
• 2‑track placer/spreader based on the SP 62 / SP 62i slipform paver platform
• Modular machine design for paving widths 4.0–7.5 m
• Hydraulically telescoping frame for on‑site adaptability
• Unified operator concept aligned with current SP series
• Optimised visibility to all key working areas and modern engine management

Powerful concrete feed

• 1.6 m wide conveyor belt
• High drive power enabling belt speeds up to 3 m/s
• Extremely fast folding of the feed unit (max. 6 s)
• Hydraulically height‑adjustable feed unit
• Hydraulically adjustable drop unit in height and slope
• Numerous functions executed hydraulically as standard
• Effective belt scraper for reliable cleaning and low wear

Robust concrete equipment

• High‑performance distribution auger for powerful concrete spreading
• Side form adjustable up to 500 mm
• Sturdy strike‑off wall with self‑supporting telescopic system
• Comfortable height adjustment of the strike‑off wall and cleaning position
• Remote‑adjustable strike‑off wall height
• Intelligent cylinder functions for smooth operation
• Easy adaptation of concrete equipment for deck profiles

Easy conversion and transport

• Simple conversion of strike‑off wall and distribution auger when changing paving width
• Minimal feed adjustment required for width changes
• No additional lifting equipment (e.g. crane) required for width changes
• Compact transport dimensions for standard lowbed trailers
• Quick assembly/disassembly of feed on left and right sides
• Multi‑coupling for fast conversion and transport

Concrete paving with the side placer
The side placer (placer/spreader) is used when paving concrete pavements with pre‑laid reinforcement: it runs ahead of the slipform paver on the pre‑laid reinforcement, a mixer truck feeds the conveyor belt from the side, concrete is deposited evenly and distributed across the working width, and the belt can be folded quickly after discharge.

Media note
Product images, animations and videos illustrating adjustment options, work processes and remote control are available on the product page (product animations / work process).

Technical specifications

• Emission stage: EU Stage 5 / US EPA Tier 4f
• Rated power: 180 kW / 245 hp at 2,300 min‑1
• Number of track drives: 2
• Paving width: 4,000–7,500 mm
• Paving thickness: 0–500 mm
• Operating weight CE (at 4.00 m paving width): 35,000 kg
• Travel speed (paving): 0–10 m/min
• Travel speed (transect): 0–18 m/min
