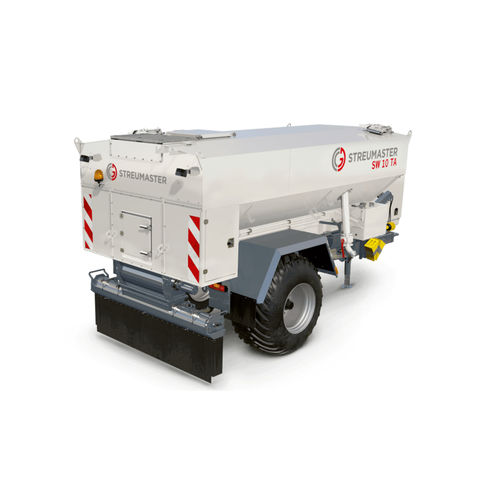

Tractor binder sprayer SW 10 TA
Add to favorites
Compare this product
Characteristics
- Options
- for tractors
Description
Product overview
Key features
Technical data
Operation & maintenance
Transport & requirements
- The SW 10 TA binder spreader is a trailer-mounted (single-axle or tandem) unit for uniform distribution of binding agents in road construction, soil stabilization and civil-engineering applications.
Key features
- Large, hydraulically driven spreading auger with integrated metering unit for consistent distribution.
- Continuously variable spread-rate adjustment for precise dosing.
- Pneumatic filling device on both left and right sides for fast, efficient refilling.
- Trailer-mounted design compatible with standard towing vehicles.
- Maximum spreading width up to 2,500 mm.
Technical data
- Tank capacity: 10 m³.
- Filling connection / inlet: 3"/4".
- Maximum laying width: 2,500 mm.
- Recommended engine power: >90 kW (≈120 hp).
- Required PTO speed: 800 min-1.
- Tow-coupling load: 3,000 kg.
- Unladen weight: 4,800 kg.
- Permissible gross weight: 13,000 kg.
Operation & maintenance
- Hydraulic drive and integrated metering ensure stable, adjustable application rates.
- Accessible auger and valves simplify cleaning and routine maintenance.
- Regular inspection of hydraulic lines and wear parts recommended to maintain accuracy.
Transport & requirements
- Requires towing vehicle meeting power and axle-rating specifications (recommended >90 kW, PTO 800 min-1).
- Available on single-axle or tandem-axle trailer depending on operational and transport needs.
- Designed for easy hookup and efficient on-site refilling operations.
