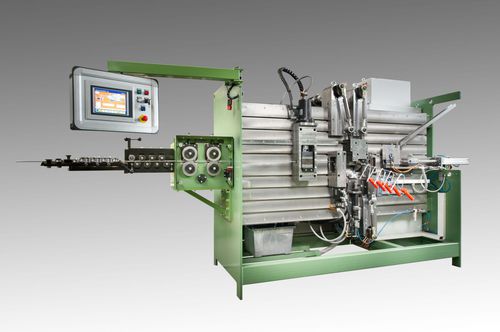

electric bending machine / manual / profile / for wires
ADMV 3 S

{{requestButtons}}

Characteristics

  • Operation:

    electric, manual

  • Product handled:

    profile, for wires

  • Other characteristics:

    automatic, cutting, forming

Description

The ADMV-3S is specially designed for paint roller handle production with a wide range of forms, sizes and wire diameters. Wire uncoiling via driven coil holder, wire straightening and wire pressing have been taken over from the previous machine model. Newly designed is the bending technology with three servo driven cams, effectively doubling the machine performance!

Modules
Driven wire coil holder OZD 1500 - for automatic wire feeding from coil with infinitely variable speed control.
Wire straightening device.
Wire feeding device (accuracy ± 0.5 mm).
Hydraulic ‘wing‘ forming and cutting device.
Bending unit with 3 cams and servo drive.
Chamfering device.
Vibration magazine for separation and transport of plastic handles.
Optional step feeder with conveyor for feeding the handles into assembly position.
Assembly device with ejection.
Further options like grooving, threading, labelling.
Process
The wire is paid off from the driven coil holder through a double plane straightening device and length measuring system. The so called wings for holding the plastic handle are pressed, the plastic handles fed from the other side and assembled on the wire. Finally the bending process is made in 3 steps in rapid sequence and the finished paint rollers ejected.

Features
Short change-over times
Manual or automatic handle feeding
All wire forms
High performance
11" touch screen
