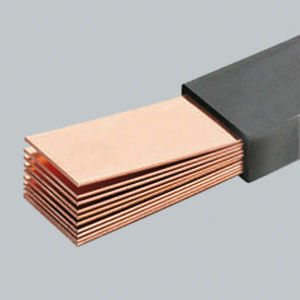

Copper busbar 01509insulatedflexibleUL
Add to favorites
Compare this product
Characteristics
- Material
- copper
- Electrical characteristics
- insulated
- Structure
- flexible
- Protection level
- UL, IEC
- Applications
- for distribution
- Primary current
914 A, 1,089 A, 1,244 A, 1,383 A, 1,510 A
Description
flexible copper busbar, plain, insulated
10x 50 x 1
1244 A, length 2 m
System
Accessories
Product group - 06
Subgroup - 81
pack size - 1
EAN - 4021267015091
Advantages of the product
The laminated Cu busbars considerably reduce the effort of connecting busbars. The bending devices required for solid copper busbars are unnecessary. The 2mm-thick insulation means that no additional covering is required.
catalog page - 2020 : 3.8, 5.2, 7.18
eCl@ss 6.1 - 27370303
eCl@ss 7.1 - 27370303
ETIM 4.0 - EC001522
ETIM 5.0 - EC001522
Standards
IEC 61439-1:2011
GB/T 7251.1
Rated current (IEC): - 1244 A
short-circuit withstandability: - see product description of the used busbar support
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 83.5 W.
(The power dissipation at full load would be 130.4 W.)
