Communication gateway KNX

fieldbusmulti-protocol

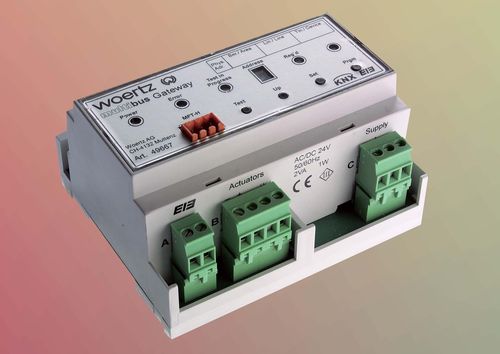

Interface for the direct connection of two different worlds. The device consists of a plastic housing with 6 modules, fitted with a plug-type connection (output). It has been conceived for DIN35 rail mounting. The whole range of Belimo MFT/MFT2 actuators, operated by MP-Bus, can be individually connected to this interface coupler and be integrated to the KNX network. The KNX interface is able to support up to 8 MP actuators - e.g. flap drives, valve drives, regulation ball valve drives or flow rate controllers - intended for building automation. During commissioning the KNX Gateway is configurated with ETS. The requested drive channel is selected and parametrised for the needed drive type. Status indicators and push-buttons for programming the address- and test-functions are located on the front side of the device. There is also a plug intended for the Belimo hand-held parameter assignment device. Actual and setpoint values, status of the drive and also the values of passive or active sensors connected to the drive are transmitted via KNX.
