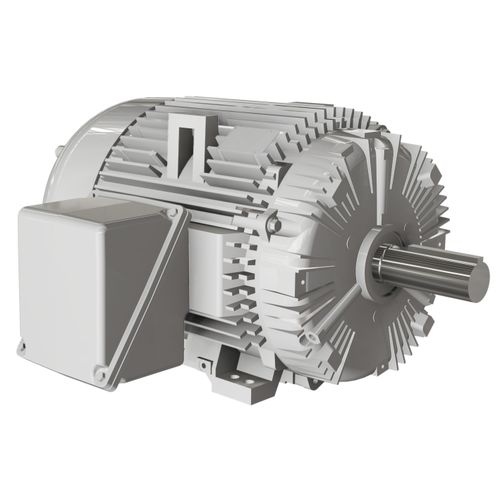

Induction motor Energy Saver® seriesthree-phaseTEFCcast iron frame
Add to favorites
Compare this product
Characteristics
- Type
- induction, three-phase
- Configuration
- TEFC, cast iron frame, TENV
- Number of poles
- 4-pole, 2-pole, 6-pole
- Other characteristics
- low-voltage, NEMA, energy-saving, UL certified, inverter operated
- Power
Min.: 1 ch
(1 hp)Max.: 350 ch
(350 hp)- Rotational speed
Min.: 1,170 rpm
(7,351.3268 rad.min-1)Max.: 3,600 rpm
(22,619.4671 rad.min-1)
Description
Frame size - 143 - 449
Mounting arrangements - Foot, C-face, D-flange
Efficiency class - NEMA Premium
Service factor - 1.15
Voltages -
230 - 575V line and inverter operation
Nema design - A or B
Temperature class - Class F insulation
Cooling method - TEFC, TENV, TEAO
Certificates - UL, CSA
Balance and vibration - ISO 1940 Grade 1, NEMA grade A
Built to the Highest Standards and Certifications
