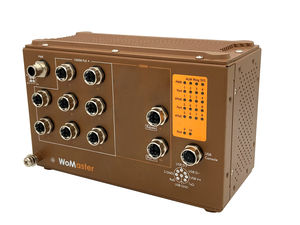

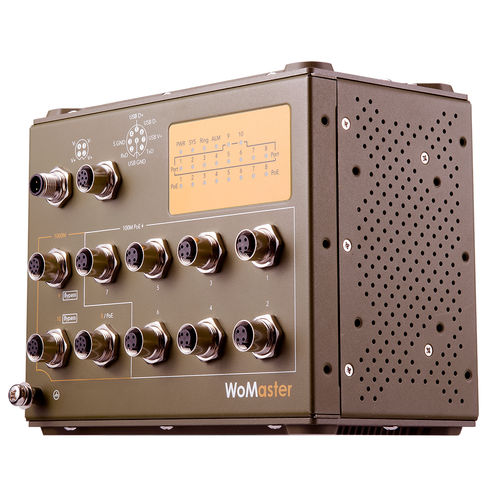

Managed switch MP310 series

10 portsgigabit Ethernetlayer 3

The managed MP310-HV switch is specially designed for fast and reliable infotainment and IP-surveillance networks on road and railway public transport. The switch provides 7 FE ports with intelligent PoE/PoE+ functionality and 3 Gigabit ports, one of which is PoE/PoE+ port and 2 Gigabit uplink ports with link bypass function ensuring network connectivity even in case of device/power fault. IP31 industrial hardware design with M12 rugged connectors eliminates the problems of vibration, shock, and temperature extremes. The switch is also equipped with M12 USB port for field configuration and trouble shooting. High Throughput Ethernet Switching ・Stores and forwards with non-blocking Switch Fabric Management Features ・Various configuration paths, including WebGUI, CLI, Telnet, SNMP v1/v2c/v3 and RMON ・IEEE 1588v2 PTP time management ・LLDP topology control ・Software utility interface for LAN devices management ・NMS system for individual component monitoring ITU-T G.8032 v1/v2 ERPS Ring Redundancy ・An ITU standard Ring redundancy Protocol ・Provide sub-50ms protection and recovery switching for Ethernet traffic ・Interoperate with 3rd party industrial switch and still remain fast recovery time ・Interoperate with commercial switch instead of STP/RSTP ・Efficient network interconnection and topology with ERPS Chain, multiple chains Enhanced Cyber Security for Critical Application ・802.1X/RADIUS port-based access control ・Port MAC secure learning ・Private VLAN/IP Security/Port Security ・HTTPs/SSH/ Management IP secure access Extreme PoE Capability ・Up to 100W system power budget at 70°C operating temperature
