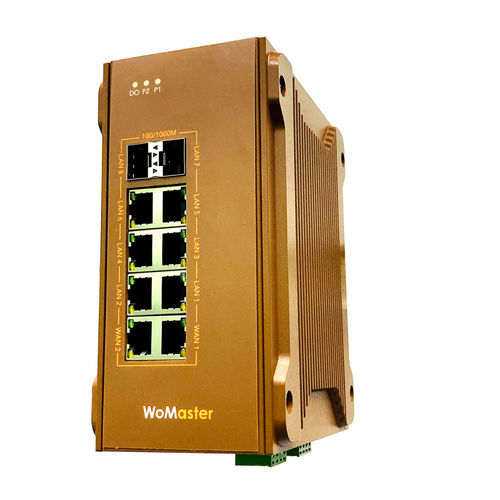

Industrial communication router DRS610

cellularmanagedall-in-one

DRS610 series is designed for industrial environments requiring a high level of security design, LAN to WAN routing and high-speed Ethernet/Fiber communications, such as industrial automation, road traffic control, etc. DRS610 provides 10-port full-gigabit Ethernet including 2-port Gigabit RJ45 WAN ports, 6-port Gigabit RJ45 LAN ports, and 2-port 100M/1G SFP LAN. The DRS610 Din-Rail layer 3 Router Switch supports dual WAN ports, NAT, Firewall, OpenVPN, IPSec, Routing, and L2 managed switch features such as VRRP routing and ERPS v2 network redundancy. The industrial design features a wide operating temperature from -40~70oC and high EMC protection. The platform supports cellular LTE and 5G extension by request. High-performance CPU & Full Gigabit Switching ・Non-blocking switch fabric design ・8 flexible Class of Service(CoS) queues ・16K MAC address table ・ 9Kb Jumbo Frame ・Fiber ports support both 100M and 1000M SFP ・DDM function for fiber connectivity monitoring ・Energy-Efficient Ethernet for power saving WoMaster ERPSv2 PLUS Ring Technology ・ITU G.8032 v1/v2 ERPS Ring Redundancy & HW-based CFM for quick acknowledgment while GbE copper link failure, providing 20ms recovery time and seamless restoration. ・ ERPSv2 available to replace legacy Ring + Chain + Dual Homing ・Inter-Operability with 3rd party industrial switch and still remain fast recovery time. ・Support Enhanced RSTP for large ring network topology with up to 80 switches. IEC62443-4-2 Level 3 / 4 Cyber Security ・802.1X/RADIUS port-based access control ・IP Security/Port Security ・HTTPs/SSH Management IP secure access
