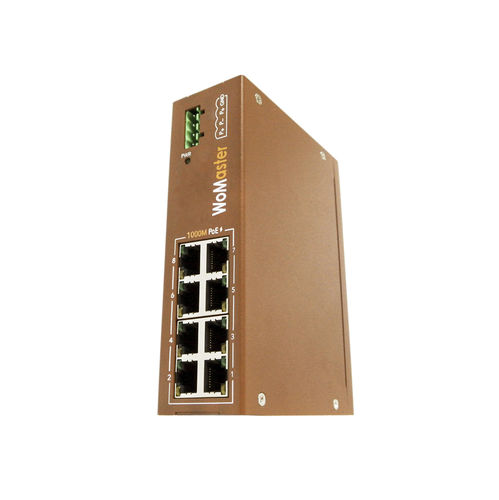

Unmanaged ethernet switch DP208-LV

8 portsgigabit EthernetDIN rail

The DP208 and DP208-LV are industrial 8-port Full-Giga PoE Ethernet switches, delivering 8 port PoE 802.3af/at. The rugged IP40 protection design of DP208 can stand for harsh environment. Both DP208 and DP208-LV operates under wide temperature (from -40 to 70°C) and have power saving design for Efficient Power Management. The compact size can fit in for space limited cabinets. The DP208-LV accepts low voltage 12/24V to 54V booster power input for all kinds of PoE applications. Full Gigabit Switching ・8-port Full-Giga Ethernet with Auto-Negotiation ・4K MAC address table ・Support 9K Jumbo Frame ・Support Broadcast storm protection* ・Stores and forwards with non-blocking switch fabric Extreme PoE Capability ・8-port IEEE 802.3af/at compliant PoE technology, up to 30W per port ・Max. 120W system PoE power budget Booster Power Design (DP208-LV) ・Booster PoE Design available for 12/24 input to 54V output for 802.3at application ・12~40VDC Input Range ・Max. 60W PoE budget at 12V Input ・Max. 120W PoE budget at 24V Input IEEE 802.3az EEE Power Management ・Energy Efficient Ethernet for low power requirement ・Idle power-saving mode for energy efficiency Rugged Mechanical Design ・Robust design protects from mechanical deformation ・Wide operating temperature range -40 ~ 70°C ・CE marking ・IEC61000-6-2/IEC61000-6-4 heavy industrial EMC
