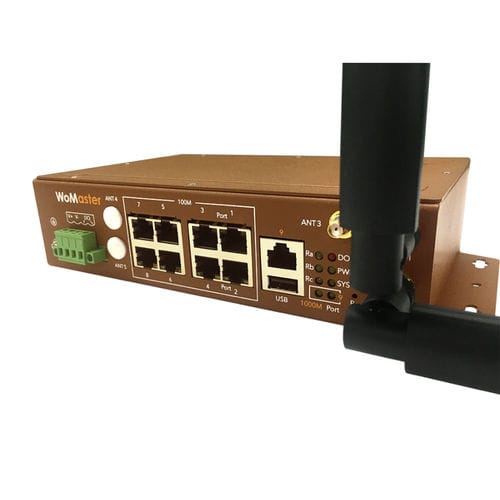

Security gateway WR319A-LTE

industrialIoTWAN

The Innovative and Intelligent LTE routing switch WR319-LTE is designed to combine functionalities of LTE router and 8-Port Ethernet switch for Smart Bus applications. It can also be used in roadside cabinets or other industrial applications for ultra-resilient high-speed Wi-Fi & multi-port Ethernet. The flexible modular design allows project customization of enable/disable WiFi. Wide Temperature and rugged design allow convenient deployment in existing infrastructure under the harsh conditions. High Throughput Wireless Performance • IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n Ethernet Routing Switch •8 Fast Ethernet ports with100M wire-speed switching Industrial IoT Gateway (WR319A, WR319PA) •Three Digital Inputs for the sensors or push button •Two Digital Outputs for alarm Enhanced Cyber Security for Critical Application •Firewall for traffic classification, port forwarding •NAT, DMZ for LAN protection •OpenVPN, IPsec, L2TP for secure connection •Port Security •HTTPs/SSH secure login Dynamic Routing with Redundancy Protection ・RIPv1&v2, OSPFv1&v2 for intra-domain routing within an autonomous system ・Efficient unicast/multicast* static routing ・VRRP guarantees sustainable routing in a single point of failure Industrial IoT LAN & Cloud Management ・Various configuration paths, including CGI WebGUI, CLI, SNMP and RMON* ・WoMaster Software Utilities -NetMaster: Network Management System with VLAN visualization* and ERPS* Ring -ViewMaster: Configuration Management -ThingMaster: Interactive monitoring dashboard by Modbus Tag to collect data from Modbus devices
