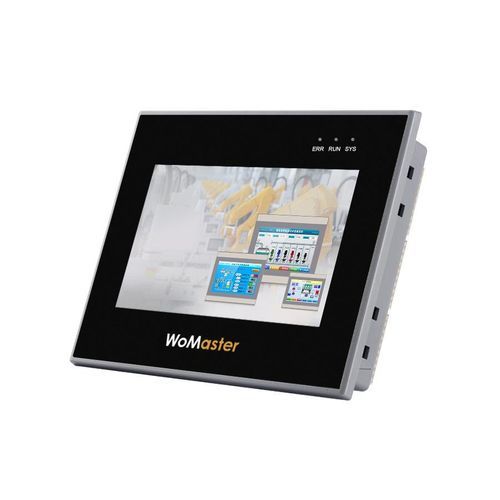

Touch screen HMI HE7

resistive touch screenprojected capacitive touchscreencapacitive touch screen

Product overview
The WoMaster HE7 is an all-in-one HMI PLC integrating a 7-inch touch screen with a programmable logic controller. It supports STEP 7-MicroWIN SMART and S7-200 SMART instructions, and provides multiple wired interfaces for machine and system integration.

Key features

• Integrated 7-inch TFT touch display (800 x 480) for local operation and visualization
• STEP 7-MicroWIN SMART compatibility (S7-200 SMART instruction set). Exclusions: certain wizards (motion/web/data logging/PROFINET) and specific communication library items
• Opto-isolated digital I/O with positive/negative trigger support
• High-speed counters and dual high-speed pulse outputs for motion and counting applications
• Built-in real-time clock with power-off data retention (replaceable button battery)
• Multiple communication ports: Ethernet (PLC & HMI ports), RS485 (2 ports), USB; supports S7-TCP, PUT/GET, OUC, MODBUS TCP/RTU, PPI, USS and free-port modes

PLC / Communication
Communication ports: 1 PLC Ethernet port, 1 HMI Ethernet port, 2 RS485 ports (port 0, port 1), 1 USB port.
Connections: PLC network port supports programming device (PG) and multiple simultaneous connections (OUC active/passive, PUT/GET, S7-TCP). Ethernet: 10/100 Mbps adaptive. RS485: PPI, MODBUS RTU, USS, free port; USB for program download and storage.
Digital I/O: up to 16 digital inputs (switch contact or level, positive/negative trigger), output variants per model (relay/transistor combinations).
Analog I/O: 4 analog inputs (0–10 V or 0–20 mA, 12-bit), 2 analog outputs (0–10 V or 0–20 mA, 12-bit). PT100: 2 channels; -50 to 300 °C.

Touch screen
Display: 7-inch TFT, 800 x 480, 16.7M colors. Touch: 4-wire resistive or high-precision capacitive option. Memory: Flash 128 MB, RAM 128 MB. Brightness 400 cd/m²; backlight >30,000 hours.

System
Program memory: 24 KB; Data memory: 16 KB; Retentive memory: 10 KB. Real-time clock with replaceable battery. Power supply: 20–28 V DC with reverse polarity protection. Power consumption: 10 W. Operating temperature: -10 °C to +50 °C. Dimensions: 212 x 157 x 41 mm.

Ordering information (model variants)

• HE7-MC0701NE-16MR: 8 DI, 8 DO (relays), 4 AI, 2 AO, 2 PT100, 2 RS485, 1 HMI Ethernet, 1 PLC Ethernet, 1 USB, 6 counting channels, 24 VDC
• HE7-MC0701NE-16MRT: 8 DI, 4 DO relays + 4 DO transistor, 4 AI, 2 AO, 2 PT100, 2 RS485, pulse outputs, 24 VDC
• HE7-MC0701NE-24MR: 16 DI, 8 DO (relays), 4 AI, 2 PT100, 1 RS485, 1 HMI Ethernet, 1 PLC Ethernet, 1 USB, 10 counting channels, 24 VDC
• HE7-MC0701NE-24MRT: 16 DI, 4 DO relays + 4 DO transistor, 4 AI, 2 PT100, 1 RS485, pulse outputs, 24 VDC
• HE7-MC0701NE-32MR: 16 DI, 16 DO (relays), 4 AI, 2 AO, 2 PT100, 2 RS485, 24 VDC
• HE7-MC0701NE-32MRT: 16 DI, 12 DO relays + 4 DO transistor, 4 AI, 2 AO, 2 PT100, 2 RS485, pulse outputs, 24 VDC

Technical specifications

• Model / Series: HE7
• Brand: WoMaster
• Display: 7-inch TFT, 800 x 480, 16.7M colors
• Touch: 4-wire resistive or high-precision capacitive
• Flash / RAM: 128 MB / 128 MB
• Program memory: 24 KB; Data memory: 16 KB; Retentive memory: 10 KB
• Power supply: 20–28 V DC; Power consumption: 10 W; reverse connection protection
• Operating temperature: -10 °C to +50 °C
• Dimensions: 212 x 157 x 41 mm
• Digital inputs: up to 16 (positive/negative trigger)
• Digital outputs: relay/transistor variants (relay max per point 2.0 A; transistor max per point 0.75 A)
• Analog inputs: 4 (0–10 V or 0–20 mA), 12-bit, ±0.8% FS
• Analog outputs: 2 channels (0–10 V or 0–20 mA), 12-bit, ±0.8% FS
• PT100 inputs: 2 channels; resolution 0.1 °C; ±1 °C; range -50 to 300 °C
• High-speed counters/pulse outputs: multiple HS counters; dual 100 kHz HS pulse outputs
• Communication: 1 PLC Ethernet + 1 HMI Ethernet; supports S7-TCP, PUT/GET, OUC, MODBUS TCP; 2 RS485 supporting MODBUS RTU, PPI, USS, free port; 1 USB
