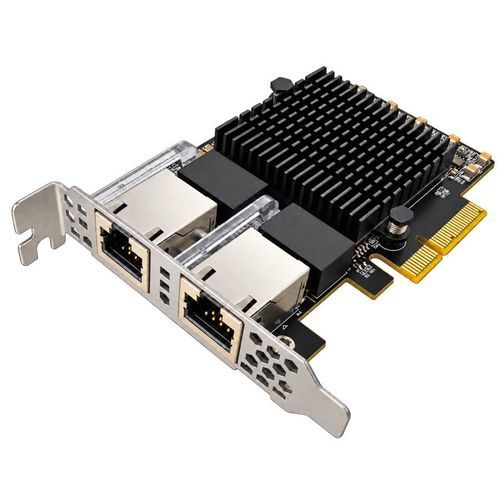

AI server network card INE610-LPSL

PCIegigabit Ethernet10 Gigabit Ethernet

Features

• Powered by the Intel® Ethernet Controller E610 series for high-performance 10GbE connectivity.
• Flexible multi-gigabit speeds: 10G / 5G / 2.5G / 1G / 100Mbps.
• Dual RJ45 ports in a Low Profile Short Length (LPSL) form factor; PCIe 4.0 x4 host interface (backward compatible with PCIe 3.0/2.0).
• Enhanced isolation and ESD protection: 8kV Hi-Port isolation; IEC 61000-4-2 Level 4 (8kV contact / 15kV air); robust surge immunity (4kV line-to-earth / 2kV line-to-line).
• Designed to meet medical safety standards EN 60601-1 and EN 60601-1-2 with electrical isolation suited for clinical and hospital environments.
• Operating range and ruggedness: continuous operation from -40°C to 70°C using industrial-grade components.
• Low power consumption: thermal-optimized design with power below 5W.

Applications
AI server networking for high-throughput data exchange between AI servers, storage and edge infrastructure.
Edge AI computing and inference systems requiring multi-gigabit links.
Industrial machine vision and high-bandwidth camera systems.
Energy & utility edge computing and ruggedized infrastructure.
Network security appliances and industrial security gateways.
Intelligent transportation systems (ITS) and other edge networking deployments.

Ordering & Package
Model: INE610-LPSL (Intel® E610 Industrial 2-port 10G Network Expansion Card, Low Profile Short Length).
Package includes: 1 x INE610-LPSL with DIN clip; 1 x standard profile bracket (pre-installed); 1 x low profile bracket; 1 x quick installation guide.

Technical specifications

• Standards: IEEE 802.3u 100Base-TX; IEEE 802.3ab 1000Base-T; IEEE 802.3bz 2.5G/5GBASE-T; IEEE 802.3an 10GBASE-T; IEEE 802.3 Flow control; IEEE 802.1Q VLAN tagging.
• Controller: Intel® Ethernet Controller E610-XAIT2.
• Host Interface: PCI Express (PCIe) 4.0 x4 (backward compatible with PCIe 3.0/2.0).
• Advanced features: Virtualization (Intel® VT-c, SR-IOV, VMDq); overlays (VXLAN, NVGRE — 10GbE relevant); Traffic management (Hardware QoS, Flexible Port Partitioning, RSS); Smart offloads (Tx/Rx IP/TCP/UDP checksum offload, TSO); Jumbo frames up to 9.5 KB.
• Security: Platform Firmware Resilience (PFR) NIST SP 800-193; firmware signature RSA3K / SHA384; Secure Boot; failsafe recovery; SPDM 1.x device measurement; FIPS 140-3 Level 1 relevant components.
• Management & OS: Remote management via NC-SI 1.2, BMC communication; supported OS: Windows Server, Linux (RHEL/SUSE/Ubuntu), VMware ESXi and major OS.
• Interface: Dual RJ45, auto-negotiation, plug and play.
• Data rates: 10G / 5G / 2.5G / 1G / 100Mbps.
• LEDs: Port 1/2 — Link (Green On), Activity (Green Blinking).
• Isolation protection: 8kV Hi-Port isolation (medical safety compliance).
• Power: PCIe 4.0 compliant; Power consumption <5W (typical TBD).
• Mechanical: Low Profile Short Length (LPSL), 110 mm (D) x 60 mm (H) without bracket.
• Weight: ≈300 g (without packaging).
• Environmental: Operating -40°C to 70°C, 5%–95% non-condensing; Storage -40°C to 85°C.
• MTBF: >200,000 hours.
• Warranty: 5 years.
• Regulatory: CE, FCC Class A, RoHS 2.0; ESD IEC 61000-4-2 Level 4; Surge IEC 61000-4-5 Level 4.
