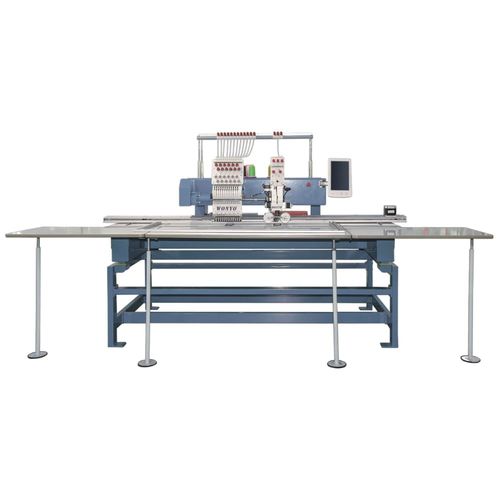

Multi-head embroidery machine

12 needles15 needles3 needles

Individual machine body Flat Embroidery size:X:400mm~1200mm Y:500mm L:2960mm W1:1568mm W2:1080mm H1:950mm H2:1518mm Max embroidery speed:1000r/min, max chenille embroidery speed:850r/min Head#:1+12+24+416+618+8~ Embroidery area: Tshirt embroidery:90mm*90mm、120mm*120mm、150mm*150mm、190mm*190mm Square hoop:290mm*290mm Mixed flat embroidery: 500mm* (400~1200)mm XY Linear rail system Embroidery machine head with individual motor for color changing and trimming, hooking The embroidery precision can reach to 0.05 Thread break detecting three module detecting (thread break detecting:Sensor + chopping wheel) Small shuttle box:available to embroider on small pocket and cuff Flat embroidery needles:3 needles, 9 needles, 12 needles, 15 needles.Coiling Embroidery:1needle, 3needles Press foot can be adjusted 0 ~ 4 mm based on the thickness of the embroidery material Data for taping embroidery can be manually set, 6 sawtooth stitches can be chosen based on the flat embroidery data, thus different sawteeth stitches can be easily got Swing of the saw tooth can be adjusted:the swing can be proofread from 6mm to 16mm, to avoid the hit of the needle and sawtooth when embroidering thick taping material Embroidery protection:Embroidery continues after power off and on again (power off, the machine can find the original wet point) Preview of the pattern and its stitching paths Protection devices:sensor for main axis, XY direction limit sensor, potentionmeter Design transfer ports:USB and Network available Power: 110,60HZ-220V,50HZ
