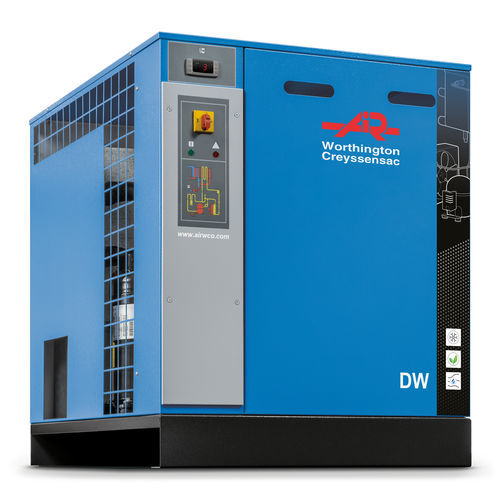

Refrigerated compressed air dryer DW seriescompacthigh-performance
Add to favorites
Compare this product
Characteristics
- Technology
- refrigerated
- Other characteristics
- compact, high-performance
- Capacity
Max.: 5,040 m³/h
(177,985.92 ft³/h)Min.: 21 m³/h
(741.61 ft³/h)- Working pressure
14 bar, 16 bar
(203.05 psi, 232.06 psi)- Motor power
Max.: 12,300 W
(16.72 hp)Min.: 130 W
(0.18 hp)- Operating temperature
Max.: 60 °C
(140 °F)Min.: 30 °C
(86 °F)- Ambient temperature
Max.: 46 °C
(114.8 °F)Min.: 25 °C
(77 °F)- Weight
Max.: 650 kg
(1,433 lb)Min.: 19 kg
(41.9 lb)
Description
Providing the professional expertise you need for your compressed air solutions, Worthington Creyssensac delivers refrigerant dryers according to your needs!
AVAILABLE MODELS :
Different sizes from 21 to 5040 m3/h
ADVANTAGES :
Simple installation | Less maintenance | Reliability
and control | Cost and energy savings | Intelligent discharge and control
FOR WHOM ?
Automotive industry
The most efficiency dryer solution for compressed air
The refrigeration dryers make it possible to lower the temperature of the compressed air in order to condense the water vapor and deliver a compressed air of high quality, immediately usable in most processes. The air network is thus clean, with a minimum risk of corrosion or malfunction of tools and equipment. Worthington Creyssensac's range of DW refrigeration dryers offers a single-phase or three-phase supply according to the needs of each customer.
