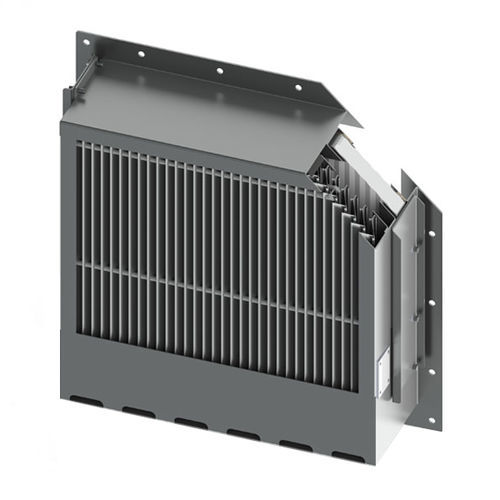

Air filter Veotec SE2

panelcoalescingfor gas turbines

Designed for use within the most extreme and demanding environments such as those found in Offshore, Coastal, Marine and Military applications. The SE2 Two Stage Spray Eliminator is a two stage filtration solution consisting of a single stage vane separator followed by a coalescing panel filter, which can be accessed either from the side or rear. Performance SE2 operates at over 99% removal of 2.5-micron water particles Blast testing information Salt removal in excess of gas turbine limits of 0.01ppm Coalescer performance for dust M5 as per EN779(CP5) Materials Casing and Flanges Stainless Steel 304L/316L (1.4307/1.4404) Aluminium 5083 Materials SE Profile Vane Stainless Steel 304L/316L (1.4307/1.4404) Aluminium 6063 T6 Acrylonitrile styrene acrylate (ASA) Rigid Polyvinyl Chloride (RPVC) Filter Media Polypropylene Vane Spacers Hydraulically expanded Stainless Steel tube Internal Foam Polyether open cell Name Plate Stainless Steel 316L or Traffolyte
