Horizontal stretch wrapper CL 030 series

for long itemswith feeding devicewith protective edge

Overview
This horizontal stretch wrapper fixes the product and protects the surface with stretch film by wrapping or bundling long goods. These wrapping machines are available in manual, semi-automatic and fully automatic versions and can be adapted to packaging material, conveyor technology and production flow.

Areas of application

• Profiles
• Tubes
• Strips / laths
• Cable ducts
• Floor coverings
• Fittings
• Shelves
• Gate / door elements
• Frames
• Customer-specific long goods

Target groups

• Steel wholesalers
• Non-ferrous metal traders
• Anodizing plants / powder coaters
• Aluminum profile manufacturers
• Plastic profile and pipe manufacturers
• Manufacturers of fittings, ladders, doors or gates
• Manufacturers of skirting boards and cornice profiles
• Planing and sawmills
• Manufacturers of wood panels, tongue-and-groove boards and furniture components
• Manufacturers of laths and bars
• Specialized industrial producers

Purposes

• Wrapping or bundling to form picked shipping units
• Stretch wrapping to provide surface protection
• Corrosion protection using special films
• Protection against moisture and dirt

Products (selected descriptions)
Standard wrapping machine CL 010
Manually operated Circle-Line wrapping machine for long goods. Ring or angle head size is selected according to product cross-section. Basic model where operator performs product and film handling.

Standard wrapping machine CL 020
Semi-automatic Circle-Line wrapping machine for long goods. Multiple operating programs enable multifunctional use and flexible processing of varied products.

Standard wrapping machine CL 040
Manually operated Circle-Line wrapping machine with adjustable parameters to facilitate the wrapping process. Designed for industrial use and configurable with application-specific options.

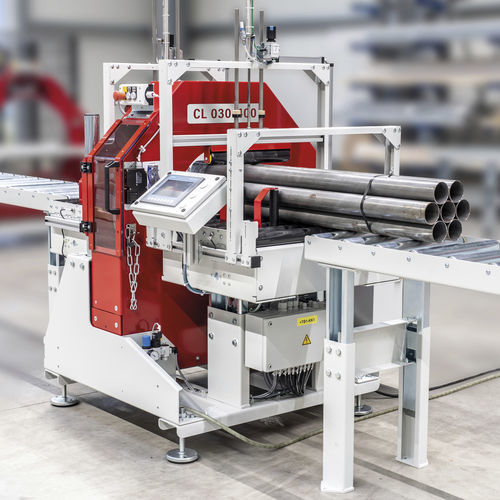

Fully automatic wrapping machine CL 030
Fully automatic Circle-Line wrapping machine for long goods. Programs distinguish wrapping, bundling and wrapped bundles. Sensors detect the product and start the automatic wrapping process. Machine control allows integration into automated lines.

CL 030 as special machine
Customer-specific fully automatic process: height-adjustable conveyors transport products synchronously. Two wrapping units with self-propelled wrap heads can apply stretch film and dispense foam edge protection.

Special machine CL 3C (V-conveyor / nonwoven curtain variants)
Variants include angled V-conveyors for easier picking and fully automatic nonwoven curtain systems. In the curtain variant the product contour is measured at the infeed, fleece width is selected, the product is conveyed through the curtain and the nonwoven is fixed and stretched. A double film roll system is available for maximum throughput.

Technology / Additional notes

• CircleLine wrapping head and FlexLine machine concepts
• Available as manual, semi-automatic or fully automatic machines
• Sensors for automatic product detection and process start on automatic machines
• Inline integration possible with suitable conveyor technology

Technical characteristics / specifications

• Model series: CL (examples: CL 010, CL 020, CL 030, CL 040, CL 3C, CL 110)
• Operating modes: manual, semi-automatic, fully automatic
• Functions: wrapping, bundling, wrapped bundles, surface and corrosion protection, moisture and dirt protection
• Control: machine control supports integration into automated lines (automatic machines)
• Options: adjustable ring/angle head sizes, nonwoven curtain system, double film roll system, foam edge protection, height-adjustable conveyors
• Compliance: CE conformity for standard CL models
• All machines can be used inline
