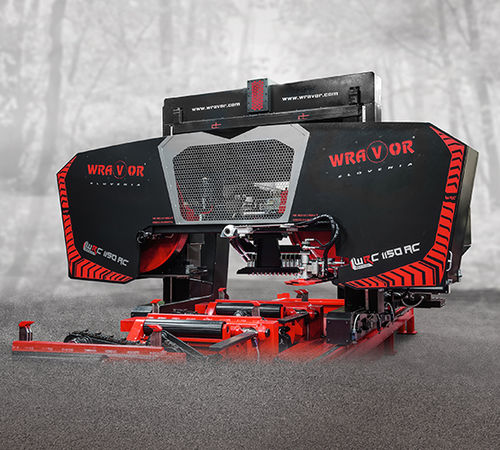

Band saw WRC 1150 AC

woodhorizontalprecision

Horizontal bandsaws for smaller sawmils • Double threaded spindle • Automatical lubrication and cleaning • Guiding hand • Double precutter • Hydraulics covered under the deck in the rails with galvanized hydraulical pipes Diameter of main wheels [mm] 1150 Width of main wheels [mm] 115 Max. log diameter (Dmax) [mm] cca Max. Width between blade guides (Gmax) [mm] 1150 Max. Thickness of cutted board (Hmax) [mm] 290 Max. Width between grips (Vmax) [mm] 710 Cutting capacity [m3/8h 20-40 Bandsaw blade length/width [mm] 8190/140 Motor type + (el. Mechanical brake / frequency inverter) [kW] 22/30/37/45 Max. Elevation of headrig (Emax) [mm] 940 Width of sawmill (Y) [cm] 6100 Total sawmill height (Z) [cm] 4000(4300)
