Secondary shredder TM3711E
single shaftpaperfor PET bottles

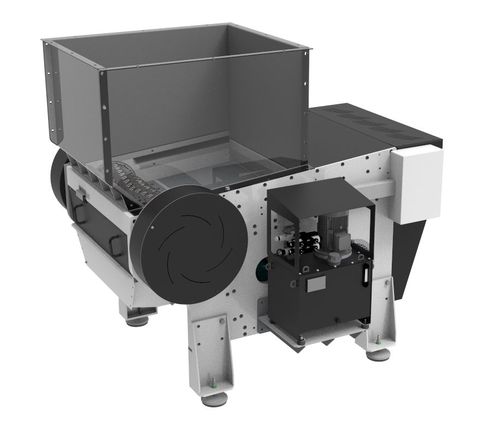

Secondary shredder - TM3711E - wrs italia - single shaft / paper / for PET bottles
Secondary shredder - TM3711E - wrs italia - single shaft / paper / for PET bottles
Secondary shredder - TM3711E - wrs italia - single shaft / paper / for PET bottles - image - 2
Secondary shredder - TM3711E - wrs italia - single shaft / paper / for PET bottles - image - 3
Secondary shredder - TM3711E - wrs italia - single shaft / paper / for PET bottles - image - 4
Secondary shredder - TM3711E - wrs italia - single shaft / paper / for PET bottles - image - 5
Add to favorites
Compare this product
Go to the wrs italia website for more information

Characteristics

Type
secondary
Number of shafts
single shaft
Application
for wood, paper, for cardboard, for cables, for non-ferrous materials, for PE, plastic, for PET bottles, for HDPE
Other characteristics
rugged, compact
Power

45,000 W

Rotor diameter

370 mm
(15 in)

Rotational speed

Min.: 80 rpm
(503 rad.min-1)

Max.: 140 rpm
(880 rad.min-1)

Operating weight

5,000 kg
(11,023.1 lb)

Machine length

2,570 mm
(101 in)

Machine width

2,058 mm
(81 in)

Machine height

2,305 mm
(91 in)

Description

ln steel complete with 1 rotor 0 370mm • Drive transmission system through toothed belt • Flywheel to stabilize speed peaks • Colours grey RAL 7024 and RAL 7035 ELECTRIC COMPONENTS •Safety self-controlling module for safety devices supervision •Electric motor 45 KW — 400V/50Hz (protection degree IP55 and inslulation class F) •Multifunction PLC •Automatic device for ram-feeder slowdown according to electrical absorption •Electric control board (protection degree IP55) OPTIONAL •Industry 4.0 Smartbox One module •Height adjustable shock absorbers •Hopper with bulkheads moved by hydraulic cylinders •Customizable colours WRS ADVANTAGES • Shredding body structure in carbon steel with section 60mm • Structural components equipped with dowel pins to facilitate disassembly and re-assembly operations • Grid moved by hydraulic cylinders •Ram-feeder positioning sensor • Different inserts (profile and kind of steel) according to the material to be processed •Easy replacement of inserts • Safety replacement of self-centerable counterblades
