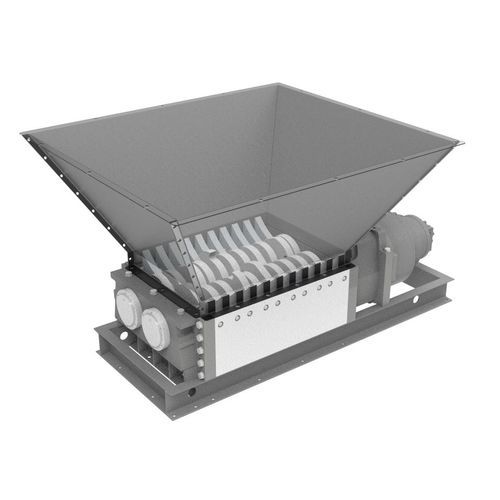

Primary shredder SH50

double shaftpapermetal

GRINDING BODY ln steel complete with 2 hexagonal shafts counter-rotating at different speed • Connecting frame in welded C-section steel bar • Right-angle or in-line planetary gearbox • Colours gray RAL 7024 and RAL 7035 ELECTRIC COMPONENTS • Safety self-controlling module for safety devices supervision • Electric motor 37 KW — 400V/50Hz (protection degree IP55 and insulation class F) • Electric control board (protection degree IP55) • Multifunction PLC • Automatic reversal device in case of overloading • Programming of number of inversions OPTIONAL • Industry 4.0 Smartbox One module vCustomizable loading hopper • Hydraulic ram-feeder • Customizable support • Easy removal of scrapers • Customizable colours WRS ADVANTAGES • Blades range with different profiles and kind of steel according to the material to be processed • Shredding body structure (composed of 2 front flanges e 2 sides) in carbon steel with section 90mm • Structural components equipped with dowel pins to facilitate disassembly and re-assembly operations • Double mechanical seals with vent chamber • Scraper hooked to the sides through sliding guides
