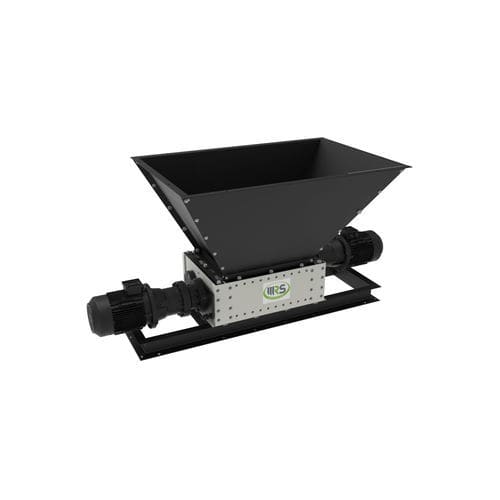

Secondary shredder SE15 E2

double shaftpaperplastic

grinding body In steel complete with 2 hexagonal shafts counter-rotating at different speed Connecting frame in welded C-section steel bar Right-angle or in-line planetary gearbox Colours grey RAL 7024 and RAL 7035 electric components Safety self-controlling module for safety devices supervision 2 electric motors from 2,2 to 7,5 KW – 400V/50Hz (protection degree IP55 and insulation class F) Electric control board (protection degree IP55) Multifunction PLC Automatic reversal device in case of overloading Programming of number of inversions optional Industry 4.0 Smartbox One module Customizable loading hopper Hydraulic ram-feeder Customizable support Easy removal of scrapers Customizable colours WRS advantages Blades range with different profiles and kind of steel according to the material to be processed Shredding body structure (composed of 2 front flanges e 2 sides) in carbon steel with section 60mm Structural components equipped with dowel pins to facilitate disassembly and re-assembly operations Easy removal of the grid Scraper hooked to the sides through sliding guides Anti-breaking system for shafts and bearings Blades axial adjustment Easy replacement of blades
