Powder batch blender TFW

gravimetric

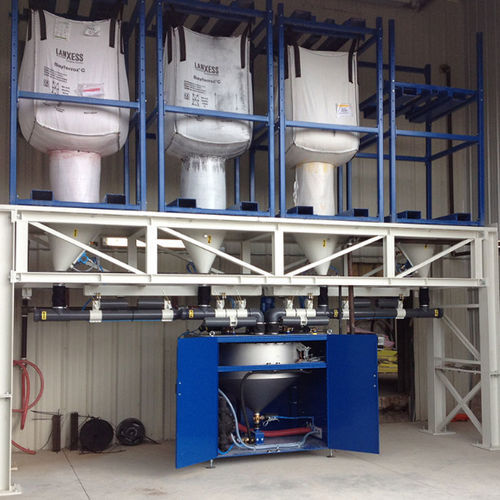

Dry/wet system to slurrify powder pigment and water one batch at a time. The slurry is then pumped directly into the concrete mixer. The system is used to slurrify powder pigment and water one batch at a time. The slurry is then pumped directly into the mixer or to holding hoppers for stand-by until the concrete mixer calls for discharge. The system can be placed up to 100 m (330') from the concrete mixer. Advantages Unlimited storage of dry powder, no liquid pigment stored, therefore no need for agitation or circulation Dust free delivery of the slurry into the mixer without dust filter Flexible ground level positioning, up to 100 m (330') from the concrete mixer The pigment slurry can be pumped to holding hoppers for stand-by until the mixer calls for discharger Automatic rinsing after each cycle No day-cleaning required System can operate with up to 6 powder pigments For Big-Bags or paper bags Fully automatic dosing process Coarse and fine metering of pigment Simple distribution in 2 or more mixers Stainless steel weigh hopper Accurate and fast metering Unlimited number of colour shades possible
