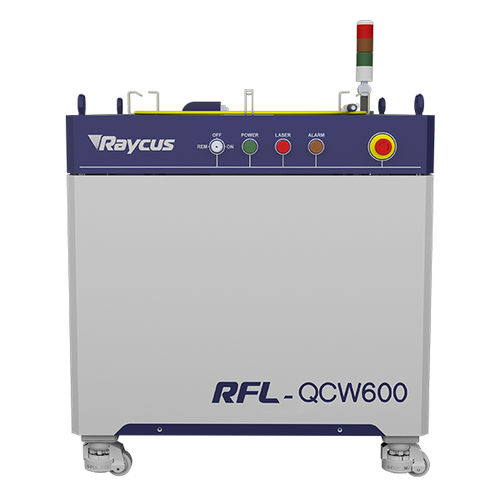

Quasi-continuous wave laser RFL-QCW600/6000
fiberredfor welding

quasi-continuous wave laser
quasi-continuous wave laser
Add to favorites
Compare this product


Characteristics

Operational mode
quasi-continuous wave
Technology
fiber
Spectrum
red
Applications
industrial, cutting, for welding, high-power, soldering
Other characteristics
precision, water-cooled, battery-powered
Power

600 W, 6,000 W

Wavelength

1,080 nm

Description

This QCW fiber laser product is a perfect alternative of existing light-pumped YAG laser and is an ideal choice for spot welding, seam welding, boring and other industrial applications,which requires wide pulse and high peak out power due to its diversified compatibility and the convenience for most YAG systems to use with simple transformation. Technical characteristics - Two Work Modes:Continuous and Pulse - Extremely Stable Output Performance - Excellent Light Beam Quality - QBH Output Connector and Optional Output Length - Air-Cooled Heat Dissipation Optical Properties . Pulse Energy(J): 60 . Repetition Frequency(Hz): 0-5000 . Pulse Width(ms): 0.05-50 . Output power instability: ±1.5% . Red laser: Yes Output characteristics . Output connector: IQB . output fiber core diameter (μm): 50(100、200 optional) . BPP(mm.nrad) : <4 Electronic control characteristics . Input power (V DC ): 380±15% VAC . Control mode: RS232/AD/ Ethernet . power adjustment range (%): 10-100 Other characteristics . Dimensions (mm ):900×960×1160(handle included) . Weight (kg): <360 . Cooling method: Water-Cooled . Working temperature (℃ ): 0-40 Application Of 600W QCW Fiber Laser RFL-QCW600/6000 Alternative of Light-Pumped YAG Lasers Spot/Seam Welding Ceramics Cutting Precision Welding /Cutting Electronic Parts Processing Power Battery Welding Soldering PCB Welding
