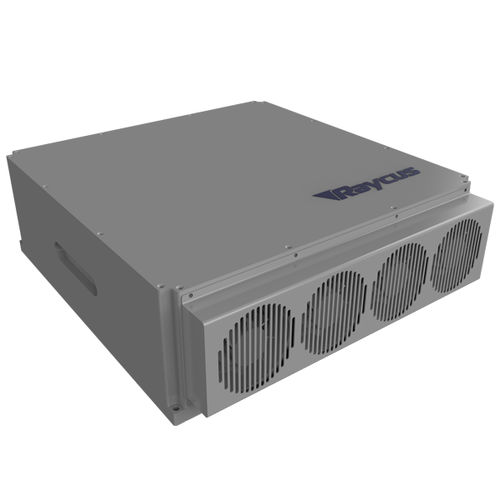

The 20-100W Q-Switched Pulse Fiber Laser Series developed by Raycus is the industrial marking and micromachining laser. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter and can be widely applied in the fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude stress resistance, stainless materials without altitude stress resistance. Its marking process features lower cost and more stable performance compared with traditional laser.
Technical characteristics
- Highly stable laser output
- High single-pulse energy
- High marking efficiency
- Short pulse setup time
- High reliability
- Maintenance-free operation
Optical Properties
. Repetition frequency: (kHz): 60-100
. Output power instability: <5%
Output characteristics
. Output Beam Diameter(mm): 6m±1
. M²:<1.6
. Polarization state: random
. Pulse Width Range(ns)200-240Max.
. Single Pulse Energy(mJshio):1
. Delivery Cable length (m): 3(Customizable)
Electronic control characteristics
. Input power (V DC ): 24
. Power adjustment range (%): 10-100
Other characteristics
. Dimensions (mm ): 310*95*260
. Cooling method: Air-cooled
. Working temperature (℃ ): 0-40
Application Of 70W Q-Switched Pulse Fiber Laser RFL-P70QA
Rust Removal
Oil Cleaning
Mold Surface Treatment
Paint Stripping
Welding Surface Pre-treatment
Portrait Stone Surface Treatment
