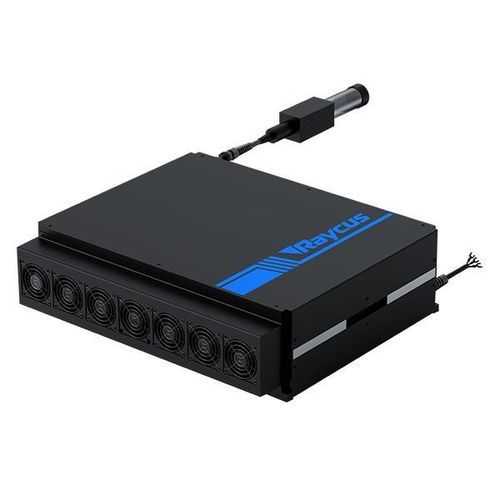

Pulsed laser source RFL-P300MX-R

fiberinfraredfor materials processing

Product overview
Raycus single‑mode 300 W MOPA pulsed fiber laser designed for precision processing in manufacturing environments. Features a new generation electronic control system with Ethernet interface, multiple control modes and real‑time switching of frequency and power. Offers high single‑pulse energy and consistent beam quality, suitable for lithium battery electrode tab cutting, cleaning and busbar processing.

Technical characteristics

• Real‑time switching of frequency and power
• Short switching time for fast process response
• High beam quality and stable output power
• High single‑pulse energy for effective material interaction
• Network port: parameter setting, status monitoring and log retrieval via Ethernet
• High reliability for industrial use
• Multiple control modes supported
• Raycus software: internal/external control, normal and cross modes

Optical properties

• Average output power: 300 W
• Center wavelength: 1064 ± 5 nm
• Maximum single pulse energy: 2 mJ (at 350 ns, 150 kHz)
• Pulse width range: 10–350 ns
• Maximum modulation frequency: 4000 kHz
• Repetition frequency: 1–4000 kHz
• Output power stability: ≤5 %
• Red light indicator: 0.2–1 mW

Output characteristics

• Input power: 1600 W
• Output connector: optical isolator
• Control interfaces: Ethernet, RS232, DB25
• Beam quality (BPP): <1
• Polarization state: Random
• Output fiber length: 3.5 m

Electronic control characteristics

• Power adjustment range: 0–100 %
• Input voltage: 48 V

Other characteristics

• Dimensions (W×H×D): 460 × 395 × 131 mm
• Weight: 26 kg
• Storage temperature: -10 to 60 ℃
• Operating temperature: 0 to 40 ℃
• Cooling method: Air cooling

Applications

• Cutting of lithium battery electrode tabs
• Electrode pole cutting
• Electrode pole cleaning
• Cleaning of electrolyte injection holes
• Busbar cleaning
• Busbar welding
• Paint stripping and surface preparation

Industries

• Metal processing
• Automotive manufacturing
• Lithium battery manufacturing

Technical specifications

• Model: RFL-P300MX-R
• Average output power: 300 W
• Center wavelength: 1064 ± 5 nm
• Maximum single pulse energy: 2 mJ (at 350 ns, 150 kHz)
• Pulse width range: 10–350 ns
• Maximum modulation frequency: 4000 kHz
• Repetition frequency: 1–4000 kHz
• Output power stability: ≤5 %
• Red light indicator: 0.2–1 mW
• Input power: 1600 W
• Output connector: optical isolator
• Control interfaces: Ethernet, RS232, DB25
• Beam quality (BPP): <1
• Polarization: Random
• Output fiber length: 3.5 m
• Power adjustment range: 0–100 %
• Input voltage: 48 V
• Dimensions: 460 × 395 × 131 mm
• Weight: 26 kg
• Storage temperature: -10 to 60 ℃
• Operating temperature: 0 to 40 ℃
• Cooling method: Air cooling
